Automotive Feedthrough Capacitors


Features & Benefits
  • Case Sizes: 0805 and 1206
  • Voltage ratings: 50V and 100V
  • Capacitance Range: 22pF to 100nF
  • Automotive Qualified (AEC-Q200): W2F, W3F and W2H (High Current)
Typical Applications
  • EMI suppression
  • Broadband I/O filtering
  • Vcc power line conditioning

Available in both a standard 0805 and 1206 size, KYOCERA AVX’s line of feedthru capacitors are ideal choices for EMI suppression, broadband I/O filtering, or Vcc power line conditioning. The unique construction of a feedthru capacitor provides low parallel inductance and offers excellent decoupling capability for all high di/dt environments and provides significant noise reduction in digital circuits to <5 GHz. KYOCERA AVX offers automotive grade feedthru capacitors qualified to AEC-Q200. These capacitors are available in NP0 and X7R dielectrics with terminations options including plated Ni and Sn.

Datasheets / Catalogs

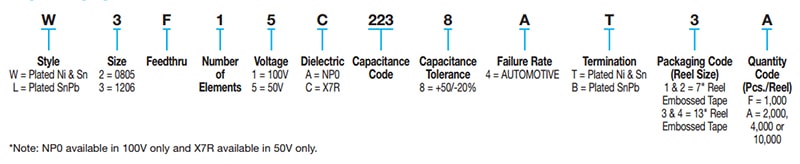

Part Number Information
Part Number Information

Automotive Feedthru


» Click to View

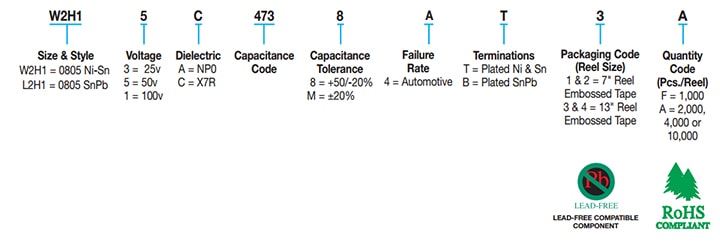

Automotive Feedthru (High Current)


» Click to View

Design Tools
Spice Models – Click to Download
