Ultra-Broadband Capacitors (UBC) | 550/560 Series


Ultra-Broadband Capacitors
Features & Benefits
  • Frequency Range: 7.2kHz to 110+ GHz
  • EIA Case Size: 01005, 0201, 0402
  • Power Rating: 4WVDC – 35WVDC
  • Ultra-Broadband performance
  • Ultra-Low Insertion Loss
  • Flat Frequency Response
  • Excellent Return Loss
  • Unit-to-Unit Performance Repeatability
  • Rugged Ceramic Construction
Typical Applications
  • Optoelectronics/High Speed Data
  • Transimpedance amplifiers
  • Receive and Transmit Optical Sub-Assembly (ROSA/TOSA)
  • Synchronous Optical Network (SONET)
  • Broadband test equipment
  • Broadband Microwave/Millimeter Wave

KYOCERA AVX new Ultra-Broadband Capacitor is manufactured with highest quality materials to provide reliable and repeatable Ultra-Broadband performance from 16KHz through 110+ GHz. It exhibits ultra-low insertion loss, flat frequency response and excellent return loss, and is ideal for D.C. Blocking, Coupling, Bypassing and Feedback applications requiring Ultra-Broadband performance.

Datasheet / Catalogs
Datasheet / Catalogs – Click to Download

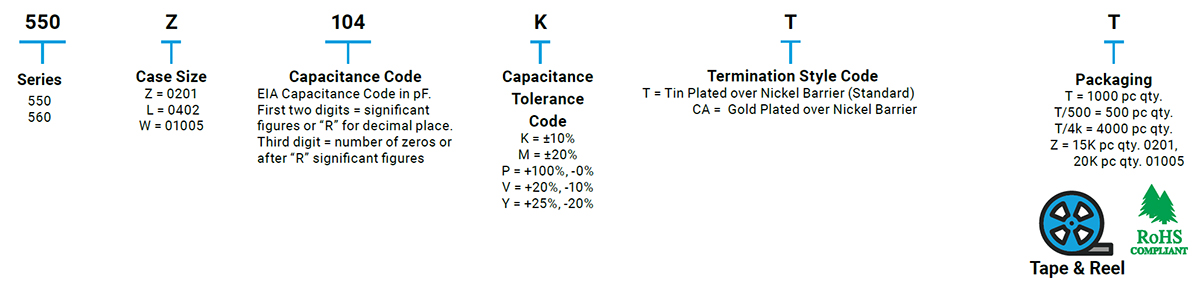

Part Number Information
Part Number Information

UBC Series
» Click to View

Design Tools
Modelithics
Modelithics
KYOCERA AVX and Modelithics have partnered to offer FREE 90-Day trials of highly accurate, scalable advanced simulation models for various KYOCERA AVX parts including this part as well as Attenuators, Capacitors, Couplers, Inductors, Diplexers, Resistors.
Use Promo Code: AVXWP
