Ultra Broadband Resistors – UBR Series


UBR Series
Features & Benefits
  • Frequency Range: DC to 40 GHz
  • EIA 0402 Case Size
  • Power Rating: 125 mW
  • Operating Temperature: -40°C to +125°C
  • 100% Laser Trimming for Tight Tolerances
  • RoHS compliant
Typical Applications
  • Optical transceiver modules
  • Broadband receiver
  • TOSA / ROSA
  • Wideband test equipment
  • Low noise amplifier
  • MMIC Amplifiers
  • Mixers
  • Directional couplers
  • Ultra broadband splitters and combiners

The Passive Micro Component (PMC) group is pleased to introduce the UBR Series of next generation of surface mount Ultra-Broadband Resistors. This product was designed utilizing our proprietary Glass Sandwich Flexiterm® Technology, (GSFT). The Flexiterm® is a surface mountable automotive qualified termination that adds an extra margin against damage due to flexture during installation.

The UBR Series has been designed with high quality selected materials that yield excellent performance. This product is ideal for use in Optical Transceiver Modules or any application requiring excellent ultra-broadband performance.

Datasheet / Catalogs
Datasheet / Catalogs – Click to Download

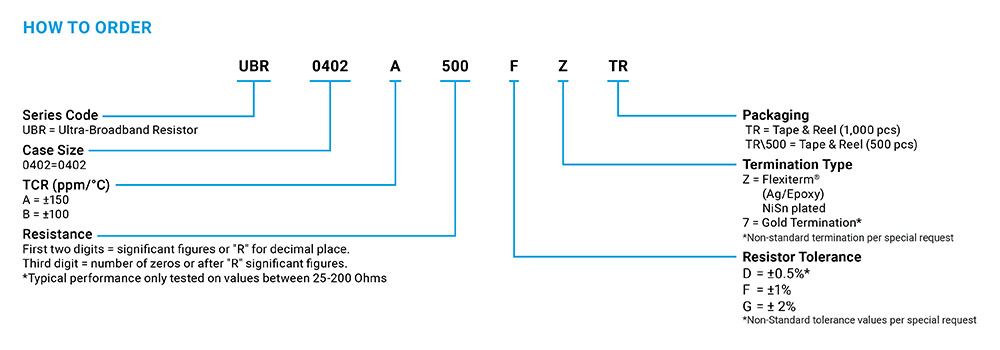

Part Number Information
Part Number Information

UBR Series
» Click to View

Design Tools
S2P Files – Click to Download
