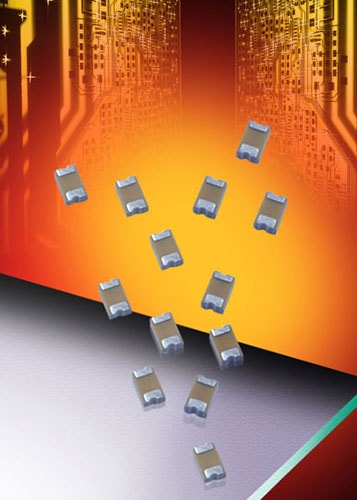

MLO™ High Current Inductors


Features & Benefits
  • High Q, High SRF, High Frequency, High Current Handling
  • Low DC Resistance
  • Surface Mountable
  • 0402 Case Size
  • RoHS Compliant Finishes
  • Available in Tape and Reel
Typical Applications
  • Mobile communications
  • Satellite Applications
  • GPS
  • Collision Avoidance
  • Wireless LANs

The Multilayer Organic High Current Inductor is a low profile organic based inductor that can support mobile communications, satellite applications, GPS, matching networks, and collision avoidance. Based on patented multilayer organic technology (US patent 6,987,307), the 0402 size Multilayer Organic High Current Inductor allows for much higher current handling over similar multilayer ceramic chip inductors, a 50% average increase in current handling over comparable thin film products with similar Q, and current handling approaching that of wire wound ceramic chip inductors. MLO™ High Current Inductors incorporate very low loss organic materials which allow for high Q and high stability over frequency. They are surface mountable and are expansion matched to FR4 printed wiring boards. MLO™ High Current Inductors utilize fine line high density interconnect technology thereby allowing for tight tolerance control and high repeatability. Reliability testing is performed to JEDEC and mil standards. Finishes are available in RoHS compliant Sn.

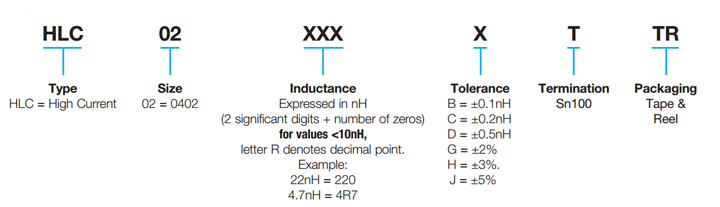

Part Number Information
Part Number Information

MLO™ High Current Inductors
» Click to View

Design Tools
S2P Files – Click to Download
