1002789M0 – GPS / L1, B1, E1, G1 / Iridium Antenna

Antenna Type: Internal (Off Board)
Technology: GPS / L1, B1, E1, G1 / Iridium
Band: GPS / L1, B1, E1, G1 / Iridium
Frequency: 1518 – 1675 MHz
Peak Gain: 6 dBic
Size (mm): 78.0 x 78.0 x 6.6
Weight (grams): 26.47
Mounting: Cable + Adhesive + Connector

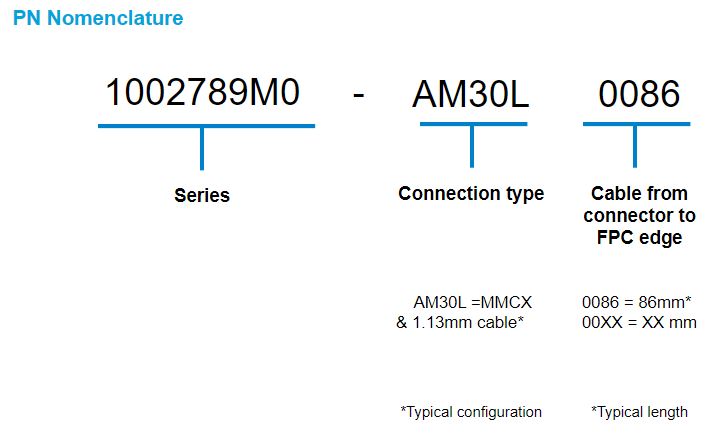

Antenna P/N: 1002789M0 | View P/N Nomenclature
Check Availability of Typical Part Numbers
Part Number

(Click P/N Below)
ConnectorCable Length (mm)
1002789M0-AM30L0086MMCX Connector86

Looking for a different cable length or connector?

Send your inquiry: antenna.info@kyocera-avx.com

SKU: 1002789M0 Category:

Description

KYOCERA AVX antennas deliver on the key needs of device designers for higher functionality and performance in smaller/thinner designs. These innovative antennas provide compelling advantages for GPS, L1, B1, E1, and Iridium band enabled devices.

Real-World Performance and Implementation

KYOCERA AVX Stamped metal antennas are designed to produce optimal performance and 3D radiation patterns, offering increased coverage range without compromising on footprint dimensions.

For more information about KYOCERA AVX Antennas, visit our antenna portfolio or contact our technical support team.
