9000352F0 – Wi-Fi 6E FPC Antenna for Metal Surfaces

Antenna Type:Internal (Off Board)
Technology:BLE, Bluetooth, WLAN, ZigBee, WiFi 6E
Band:802.11 a/b/g/n/ac/ax
Frequency:2400 – 2485 MHz, 4900 – 5850 MHz, 6000 – 7125 MHz
Peak Gain: 2400-2485 MHz = 3.2 dBi
4900-5850 MHz = 3.0 dBi
6000-7125 MHz = 2.6 dBi
Efficiency: 2400-2485 MHz = 55%
4900-5850 MHz = 59%
6000-7125 MHz = 40%
Size (mm):31.0 x 30.5 x 0.16
Weight (grams):1.4
Mounting:Adhesive + Cable + Connector

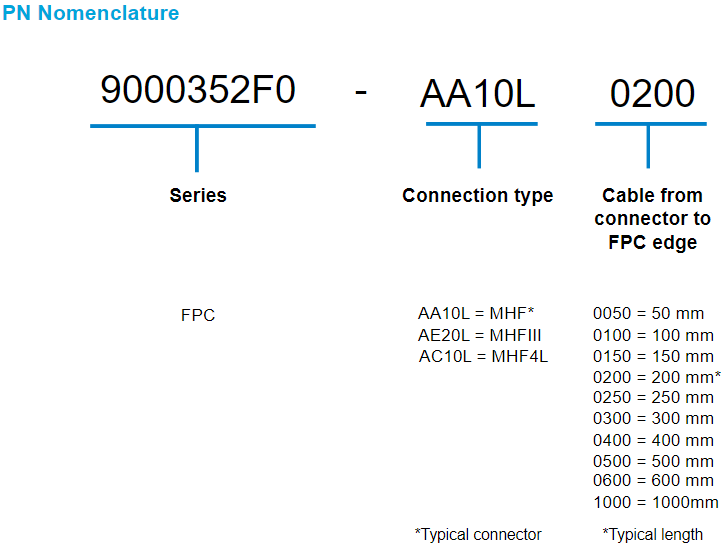

Antenna P/N:9000352F0 | View P/N Nomenclature

Check Availability of Typical Part Numbers

Part Number

(Click P/N Below)
ConnectorCable Length (mm)
9000352F0-AA10L0050U.FL connector50
9000352F0-AA10L0100U.FL connector100
9000352F0-AA10L0150U.FL connector150
9000352F0-AA10L0200U.FL connector200
9000352F0-AA10L0250U.FL connector250
9000352F0-AA10L0300U.FL connector300
9000352F0-AA10L0400U.FL connector400
9000352F0-AA10L0500U.FL connector500
9000352F0-AA10L0600U.FL connector600
9000352F0-AA10L1000U.FL connector1000
9000352F0-AC10L0050MHF4L Connector50
9000352F0-AC10L0100MHF4L Connector100
9000352F0-AC10L0150MHF4L Connector150
9000352F0-AC10L0200MHF4L Connector200
9000352F0-AC10L0250MHF4L Connector250
9000352F0-AC10L0300MHF4L Connector300
9000352F0-AC10L0400MHF4L Connector400
9000352F0-AC10L0500MHF4L Connector500
9000352F0-AC10L0600MHF4L Connector600
9000352F0-AC10L1000MHF4L Connector1000
9000352F0-AE10L0050W.FL compatible50
9000352F0-AE10L0100W.FL compatible100
9000352F0-AE10L0150W.FL compatible150
9000352F0-AE10L0200W.FL compatible200
9000352F0-AE10L0250W.FL compatible250
9000352F0-AE10L0300W.FL compatible300
9000352F0-AE10L0400W.FL compatible400
9000352F0-AE10L0500W.FL compatible500
9000352F0-AE10L0600W.FL compatible600
9000352F0-AE10L1000W.FL compatible1000

Looking for a different cable length or connector?

Send your inquiry:

SKU: 9000352F0 Category:


KYOCERA AVX’s FPC 9000352F0 WLAN antennas deliver on the key needs of device designers for higher functionality and performance in smaller/thinner designs. These innovative antennas provide compelling advantages for 2.4 GHz, 5.0 GHz, 6.0 GHz, and 7.0 GHz enabled devices.

Real-World Performance and Implementation

The 9000352F0 is offered in many standard cable lengths ranging from 50mm up to 1000 mm. Standard connector options offered in MHF, MHFIII and MHF4L compatibility. It is designed to be placed over metal surfaces, with only 5 mm of the FPC antenna exceeding the surface.
