AEH Series | SMD Aluminum Electrolytic Capacitor

AEH Series
Features & Benefits
  • Long Endurance: 125°C, 2000 to 5000hrs
  • Designed for SMT on Hi-Density PCBs
  • Voltage Range: 10V to 450V
  • CV Range: 2.2μF – 470μF
  • Temperature Range:
    -55°C to +125°C (10-80V)
    -40°C to +125°C (250-450V)
  • RoHS compliant
  • AEC-Q200 Tested
Typical Applications
  • DC/DC convectors, for high density SMD boards and higher operation temperature environment applications

KYOCERA AVX’s range of aluminum capacitors provide high-CV performance in smaller packages than competing can-type aluminum capacitors, very low equivalent series resistance (ESR), high endurance, and compatibility with lead-free and RoHS requirements.

Datasheet / Catalog
Datasheet / Catalog – Click to Download

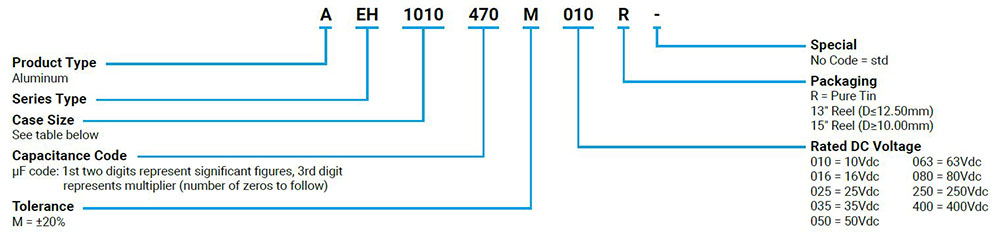

Part Number Information
Part Number Information

AEH Series
» Click to View
