Low Capacitance (+150°C) Automotive Series Varistors

Low Capacitance (150c) Automotive Varistors
Features & Benefits
  • AEC-Q200 qualified
  • EMI/RFI filtering in the off-state
  • Low signal distortion
  • 150°C operating temperature
Typical Applications
  • Under hood
  • High Temperature Applications
  • Down Hole Drilling
  • Bus Interface Protection
  • CAN Bus, BCM, TCU
  • RF/Microwave & Antenna Applications
  • Capacitance Sensitive Applications

KYOCERA AVX Low Capacitance (+150°C) Automotive Series Varistors provide bi-directional protection against transient voltages and EMI filtering in single compact component and are suitable for automotive, industrial and general applications with high temperature requirements. Parts are AEC-Q200 qualified. Parts offer low signal distortion, low loss and high reliability. Thanks to the low capacitance, parts are ideal for protection of communication bus, sensors, high-speed data lines, RF, antennas and other capacitance sensitive applications in high temperature environment.

Available in 0603, 2-element 0405 and 4-element 0612 array with 18 and 32Vdc working voltage and capacitance from 10 to 22pF. Operating temperature range is -55°C to +150°C with no derating. Parts offer excellent lead free solderability thanks to Ni Barrier/100% Sn termination.

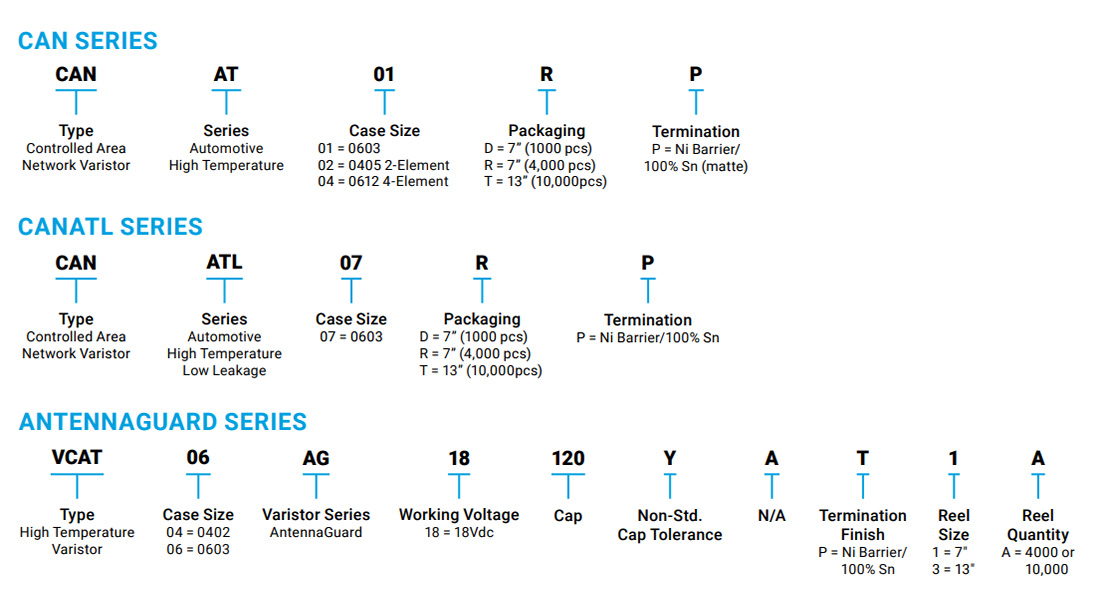

Part Number Information
Part Number Information

High Temp (150°C) Low Capacitance Automotive Varistors
» Click to View

Technical Information
