6806 Series | 0.5mm Pitch


6806 Series
Features & Benefits
  • Contact Material: Copper alloy
  • Insulator Material: Heat-resistant plastic
  • Operating Temperature Range: -40 to +105°C

The 6806 Series are FPC/FFC connectors for high-speed transmission featuring a pitch of 0.5mm and height of 1.75mm. A convex-shaped actuator shape facilitates opening / closing operations, and a “click” feeling assures locking when the FPC/FFC is mated. The contact point is designed widely in order to obtain high contact reliability with FPC/FFC conductors. In addition to FPCs, these connectors can also be used for impedance-adjustable FFCs. By improving high-frequency characteristics with impedance matching, the connectors allow high-speed transmission which corresponds to next-generation interfaces V-by-OneRHS* adopted in LCD TVs.

* V-by-One is a registered trademark of THine Electronics, Inc.

Datasheet / Catalogs
Datasheet / Catalogs – Click to Download

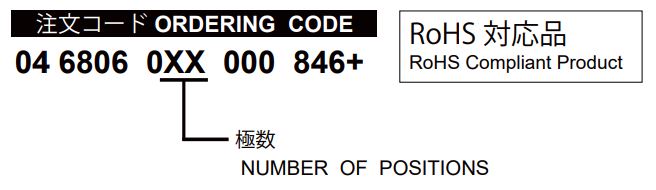

Part Number Information
