Features & Benefits
- Patented 20º angled face on the socket gives self-cleaning face when mated with plug
- Metal Latching area integral to socket which saves PCB real estate
- Integral to socket is a mechanical 50Ω switching coax for SMT termination
- Single sprung plug contact design gives ten thousand mating cycles and cleaning/wiping action
- Customer has option to terminate own RF coax using KYOCERA AVX custom tooling: 06-9157-7116-01-000
- SMT plug has unique location pyramids that give positive alignment to portable device, and assist blind mating
- RoHS Compliant
Typical Applications
- Mobile Phones
- PDA
- Medical
- Docking/Charging for any portable device
The 9157 series was specifically designed for portable equipment. KYOCERA AVX now offers this two-part system as a standard product. The fixed SMT socket is designed to be housed within the confined dimensional constraints of the portable device. The plug/cover connector has sprung contacts and is designed for termination to accessory equipment. The connector is designed to house fifteen signal contacts on a 1mm pitch rated at 1.5A. There is the option to include a switching RF coax. A cradle SMT plug connector for docking applications is also available as standard and has the option of including a SMT RF coax. Whatever your requirements, the 9157 series can also be customized to suit your application.
Datasheet / Catalog – Click to Download

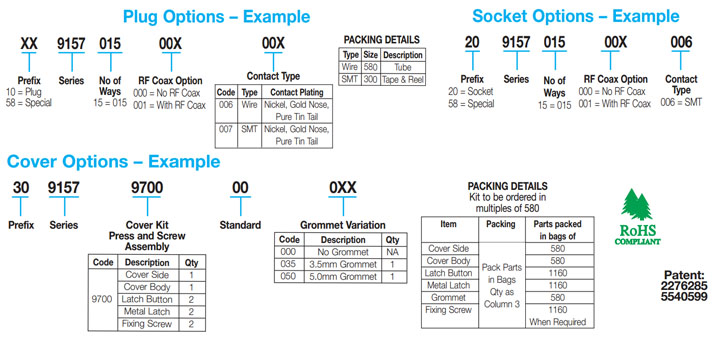

Part Number Information
