9162-300 Series | Locking SIM

Features & Benefits
  • SMT with locking hinged guide
  • 2.50mm connector height
  • Selective gold on mating surface/tin on solder tails
  • Tape and reel packaging
Typical Applications
  • Cellular Phones
  • Radios

The locking SIM is for 9162 Slide-IN & 9162 SIM/microSD; it accepts GSM standard 11.11 cards, is a secure locking latch mechanism. The locking SIM 9162-300 is robust, and has a good resistance against shock and vibration. The SIM installed height is 1.50mm, and it’s polarized to eliminate improper insertion of the card.

Datasheet / Catalog
Datasheet / Catalog – Click to Download

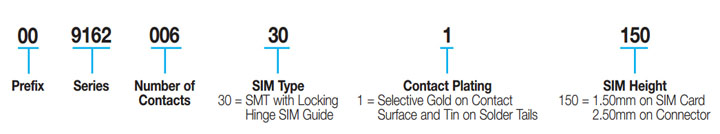

Part Number Information
Part Number Information

Locking SIM: 9162-300
» Click to View

3D Models
3D Model – Click to View
