BP Series (1206) Thin Film Band Pass Filters

Features & Benefits
  • Small size: 1206
  • Band: Up to 6100 MHz
  • Characteristic impedance: 50Ω
  • Operating / Storage temp: -40°C – 85°C
  • Power Handling: 8W (continuous)
  • Low profile
  • Rugged construction
  • Taped and reeled
  • RoHS compliant
Typical Applications
  • Base station
  • 5G / 6G LTE
  • Antenna matching
  • Mobile communications
  • Satellite TV receivers
  • Radar
  • Vehicle location systems
  • Wireless LAN’s

The BP1206 Band Pass Filter is based on thin-film multilayer technology. The technology provides a miniature part with excellent high frequency performance and rugged construction for reliable automatic assembly.

The ITF Filter is offered in a variety of frequency bands compatible with various types of high frequency wireless systems.

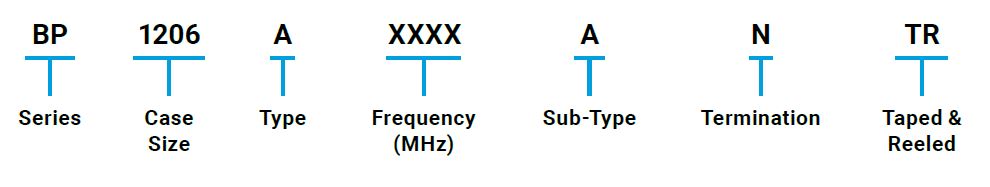

Part Number Information
Part Number Information

BP1206 LGA Filter
» Click to View


Additional Band Pass filters are available per request.
Please Contact our factory.
