TPM Multianode

Features & Benefits
  • Multi-anode Construction
  • Super Low ESR
  • 100% Surge Current Tested
  • CV range: 10-2200μF / 2.5-50V
  • 5 Case Sizes Available
  • “Mirror” Multi-anode Construction Used with D, Y Case Capacitors Reduces ESL to Half
Typical Applications
  • High Power DC/DC General Applications

The TPM Series Multi-anode Ultra Low ESR Capacitors are available in case codes D, E, V, and Y and offer a CV range from 10-2200µF / 2.5-50V. The tantalum capacitors feature a “mirror” multi-anode construction used with the D case capacitors to reduce ESL to half. The TPM series multi-anode ultra low ESR capacitors are PB-free and RoHS compliant.

Datasheet / Catalog

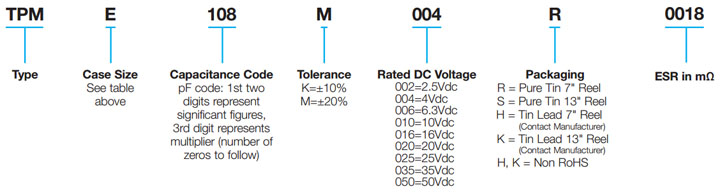

Part Number Information
Part Number Information

» Click to View

Spice Models / Software
