The antennas listed below on the reference table are compatible with the Telit modules outlined. Please check our reference table below to see which are most suitable for your device.
= Popular Product
| Antenna Solution | Product Type | Technology | Mounting | Connector | LE910C4 Series (CAT-4+GNSS) *except LE910Cx-NF version (Linux) | LE910C1 Series (CAT-1+GNSS) *except LE910Cx-NF version (Linux) | ME910C1 Series (LTE-M/NB-IoT+GNSS) | ME910G1 Series (LTE-M/NB-IoT+GNSS) *ME910G1-W3 supported by all LTE antennas | ME310G1 Series (LTE-M/NB-IoT+GNSS) *ME310G1-W3 supported by all LTE antennas | NE310L2 Series (NB-IoT) | |
|---|---|---|---|---|---|---|---|---|---|---|---|

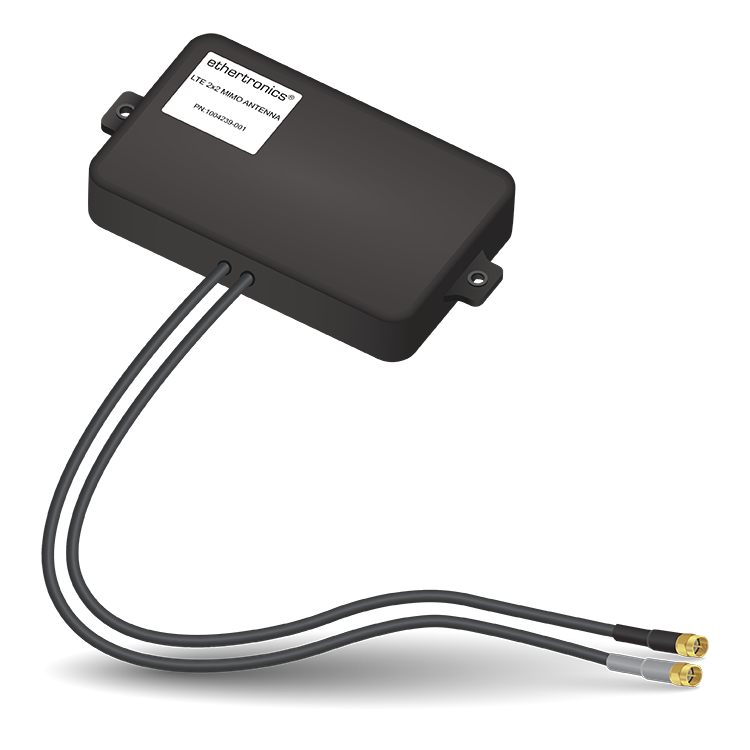

| 1004239-001 |  | External (Indoor) | Broadband External LTE MIMO Antenna CAT-1/CAT-4 CAT-M/NB-IoT | Screw Mount + Cable + Connector | SMA (M) RP-SMA (M) | OK | OK | OK | OK | ||
| 1004795 |  | Internal (On Board) | CAT-1/CAT-4 CAT-M/NB-IoT | SMT | N/A | OK *Valid for LE910Cx-NF version (Linux) | OK *Valid for LE910Cx-NF version (Linux) | OK | OK | OK | OK |
| 1004796 |  | Internal (On Board) | CAT-1/CAT-4 CAT-M/NB-IoT | SMT | N/A | OK *Valid for LE910Cx-NF version (Linux) | OK *Valid for LE910Cx-NF version (Linux) | OK | OK | OK | OK |

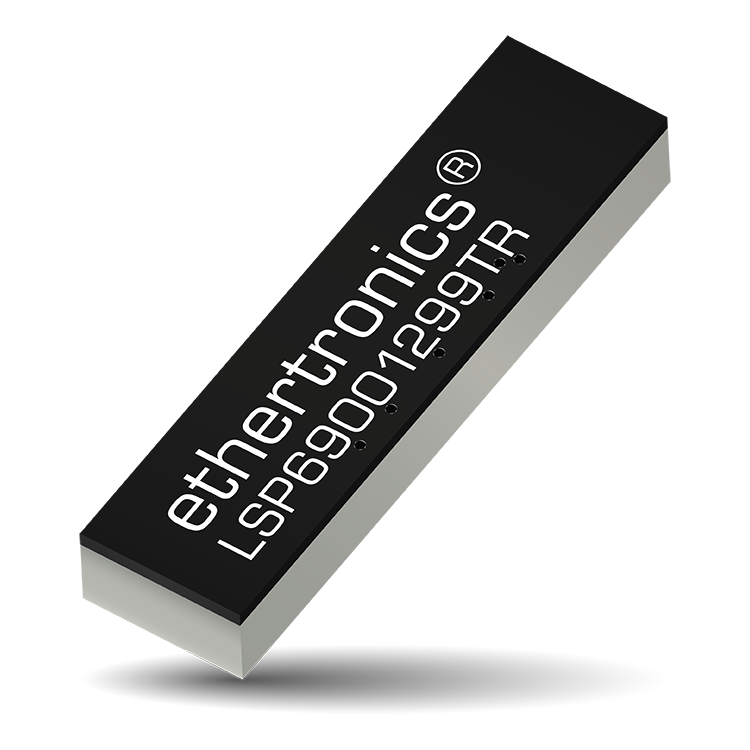

| LSP69001299TR |  | Internal (On Board) | CAT-1/CAT-4 CAT-M/NB-IoT | SMT | N/A | OK | OK | OK | OK | ||
| P822601 |  | Internal (On Board) | CAT-1/CAT-4 CAT-M/NB-IoT | SMT | N/A | OK | OK | OK | OK | ||
| P822602 |  | Internal (On Board) | CAT-1/CAT-4 CAT-M/NB-IoT | SMT | N/A | OK | OK | OK | OK | ||
| 1002436 |  | Internal (On Board) | CAT-1/CAT-4 CAT-M/NB-IoT | SMT | N/A | OK | OK | OK | OK | ||
| 1002089 |  | Internal (Off Board) | CAT-1/CAT-4 CAT-M/NB-IoT | Connector | SMA | OK | OK | OK | OK | ||
| 1002289 |  | Internal (Off Board) | CAT-1/CAT-4 CAT-M/NB-IoT | Adhesive | MHF | OK | OK | OK | OK | ||
| 1002292 |  | Internal (Off Board) | CAT-1/CAT-4 CAT-M/NB-IoT | Adhesive | MHF | OK | OK | OK | OK | ||
| 1003657 |  | External (Indoor) | CAT-1/CAT-4 CAT-M/NB-IoT | Adhesive | MMCX | OK | OK | OK | OK | ||
| 1004112 |  | External (Indoor) | CAT-1/CAT-4 CAT-M/NB-IoT | Connector | SMA, TCN | OK | OK | OK | OK | ||
| X1005246 |  | Externa (Outdoor) | CAT-1/CAT-4 CAT-M/NB-IoT | Adhesive | SMA | OK | OK | OK | OK | ||
| X9001248 |  | External (Outdoor) | CAT-1/CAT-4 CAT-M/NB-IoT | Magnetic | SMA | OK | OK | OK | OK | ||
| 1001011 |  | Internal (On Board) | GNSS | SMT | N/A | OK | OK | OK | OK | OK | |
| M830120 |  | Internal (On Board) | GNSS | SMT | N/A | OK | OK | OK | OK | OK | |
| 1002649 |  | Internal (On Board) | GNSS | Adhesive | N/A | OK | OK | OK | OK | OK | |
| 1004322 |  | Internal (On Board) | GNSS | Adhesive | N/A | OK | OK | OK | OK | OK | |
| 9000440 |  | Internal (Off Board) | GNSS | Adhesive | MHF | OK | OK | OK | OK | OK | |
| 1004259 |  | Internal (Off Board) | GNSS | Adhesive | MHF | OK | OK | OK | OK | OK | |
| X1005247 |  | External (Outdoor) | GNSS (Active) | Adhesive | SMA | OK | OK | OK | OK | OK | |
| X1005249 |  | External (Outdoor) | GPS/GLONASS (active) & CAT-1/CAT-4 CAT-M/NB-IoT 2-in-1 | Adhesive | SMA | OK | OK | OK | OK | ||
| LE910C4 Series (CAT-4+GNSS) | LE910C1 Series (CAT-1+GNSS) | ME910C1 Series (LTE-M/NB-IoT+GNSS) | ME910G1 Series (LTE-M/NB-IoT+GNSS) | ME310G1 Series (LTE-M/NB-IoT+GNSS) | NE310L2 Series (NB-IoT) |
