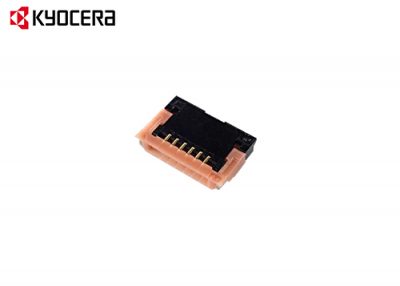

6298 Series | 0.5mm Pitch

Connector Type:	FPC / FFC
Technology:	Fine Pitch
# of Positions:	3-8
Current Rating	AC/DC 0.4A
Voltage Rating:	AC/DC 50V
Operating Temperature:	-40°C to +85°C
Industries:	Automotive, Medical, Industrial, IoT, Consumer, Transportation / Commercial Vehicles, Data / Telecom, Mobile Devices, Military / Aerospace

Download Datasheet

SKU: 6298 Category: Connectors

Description

Overview:

6298 Series | 0.5mm Pitch

The 6298 Series are low profile connectors specially designed for LCD modules with back-light requirements. These products are 0.5mm pitch, bottom contact, ZIF, right angle, SMT, back-lock type connectors with heights of 0.9mm. FPCs with notches ensure accurate insertion into the connectors.

For more information about KYOCERA AVX Connectors, visit our connector portfolio or contact our technical support team.

Features & Benefits:

Anti solder wicking
Contact Material: Copper alloy
Insulator Material: Heat-resistant plastic
Operating Temperature Range: -40 to +85°C

Typical Applications:

Smartphone/Tablet PC
Wearable Device
Laptop
Audio equipment
Gaming Equipment
