9176-600 Series | Single Tine PTH IDC Connectors (18-24 AWG)

9176-600 Series | Single Tine PTH IDC Connectors (18-24 AWG)

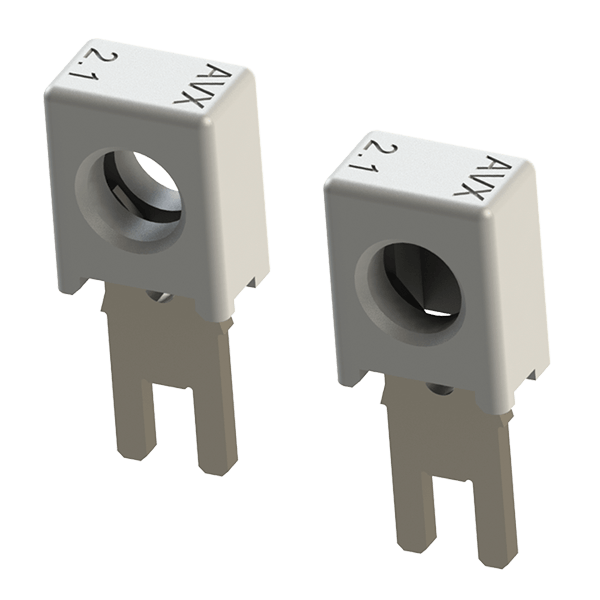

This single contact version of the proven 9176 family of connectors is the first in Plated Through Hole (PTH) termination. While supporting all of the features and benefits from the SMT offering, this connector provides a new option for a small, cost effective and high performance WTB solution.

For more information about KYOCERA AVX Connectors, visit our connector portfolio or contact our technical support team.

• IDC contact provides a gas-tight connection to the PCB for long term reliability
• Plastic cap retains the contact and then acts as the assembly tool to terminate the wires; no special tooling
• Tested to automotive levels on shock, vibration and temperature cycling for reliability
• The IDC contact reduces the total applied cost versus solder or crimp processes

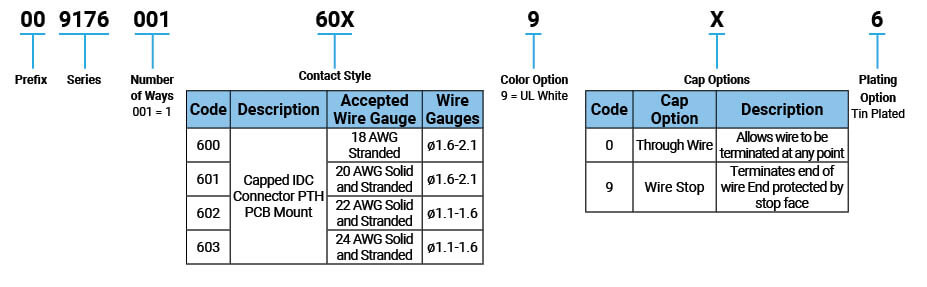

• Connectors are available in two configurations for maximum flexibility: End and Through Wire

• Machine Controls: motors, drives, solenoids, sensors, fans and pumps
• Commercial Buildings: controls, security, fire and sensors
• Smart Grid: meters, breakers and panels
• SSL/LED: bulbs, fixtures, signage and streetlights
