| Antenna Type: | Internal (Off Board) |
| Technology: | UWB |
| Frequency: | 6.0 – 8.5 GHz |
| Peak Gain: | 6.1 dBi |
| Efficiency: | 85% |
| Size (mm): | 20.6 x 18.6 x 0.8 |
| Weight (grams): | 2.7 ~ 4.3 |
| Mounting: | Connector |

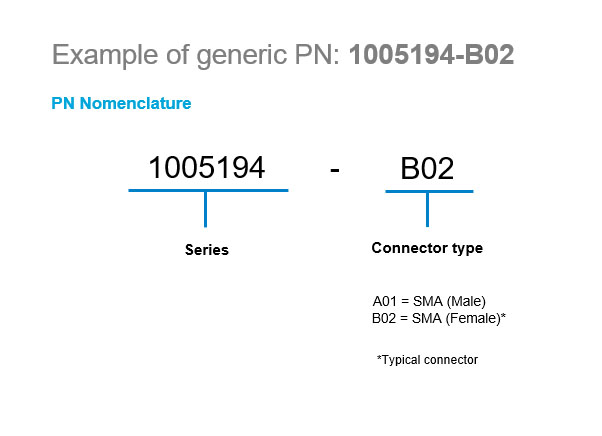

| Antenna P/N: | 1005194 | View P/N Nomenclature |
The 1005194 is a versatile off-board UWB PCB antenna optimized for applications spanning 6.0 – 8.5 GHz where off-board implementation is advantageous and necessary. The 1005194 antenna incorporates a rigid mounting structure through an SMA connection allowing for ease of assembly to any device.
