W4 Family – Embedded Wi-Fi 6E & 7 Antenna – Side Cable

Antenna Type:Internal (Off Board)
Technology:Wi-Fi / Wi-Fi 6E & 7 / BT / WLAN / BLE / ZIGBEE
Band:802.11 a/b/g/n/ac/ax
Frequency:2400-2485 MHz / 5150-5850 MHz / 5925-7127 MHz
Peak Gain:Various Depending on Frequency – Refer to Datasheet
Efficiency:Various Depending on Frequency – Refer to Datasheet
Size (mm):42.60 x 8.60 x 0.53
Weight (grams):0.7
Mounting:Adhesive + Cable + Connector

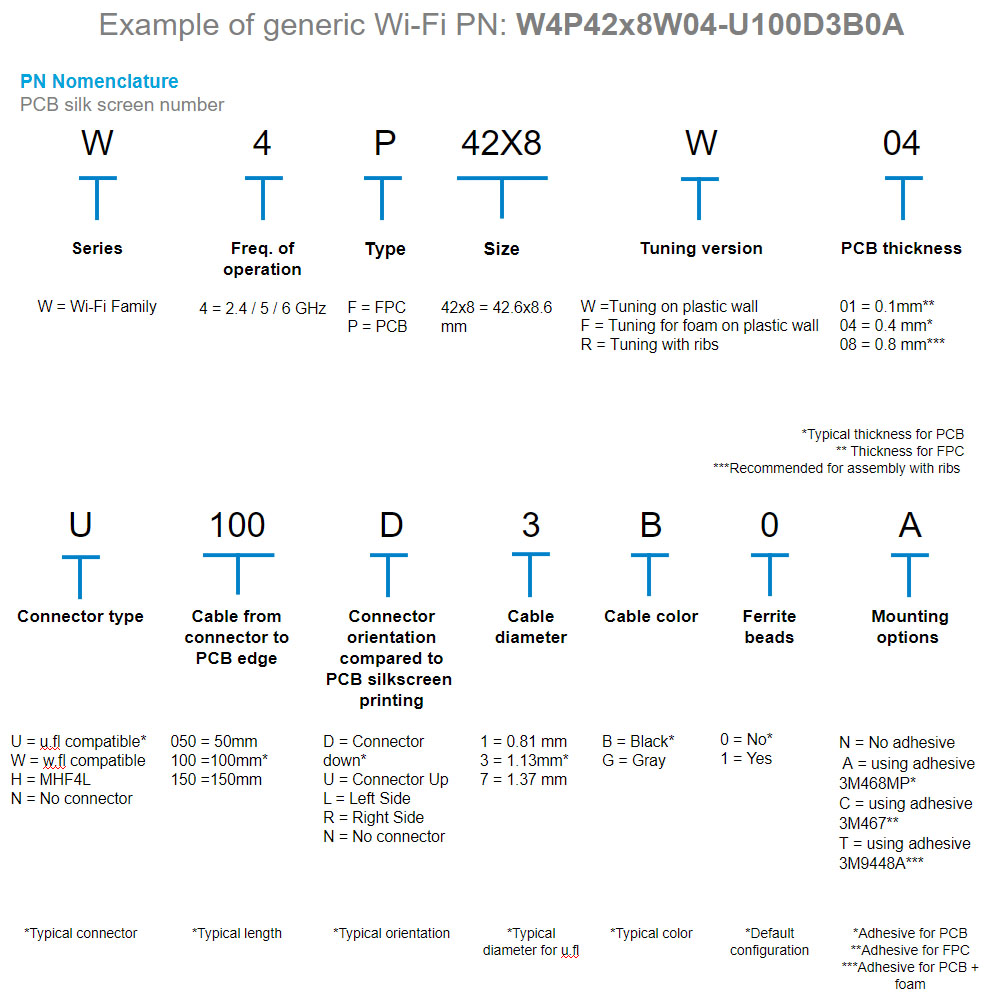

Antenna P/N:W4 Family | View P/N Nomenclature

Check Availability of Typical Part Numbers

Part Number

(Click P/N Below)
TypeTuning VersionConnectorCable Length (mm)Mounting Options
W4P42X8W04-U100D3B0APCB3M 468MP /
MHF l (U.FL Compatible)100Using
W4F42X8W01-U100D3B0CFPC3M 468MP /
MHF l (U.FL Compatible)100Using

Looking for a different cable length or connector?

Send your inquiry:

SKU: W4 Family Category:


KYOCERA AVX’s W4 side cable fed Family antennas includes embedded Wi-Fi Antenna designs in FPC and PCB style solutions. Alternatively, a PCB with foam on the back side is also offered to minimize the detuning of the antenna on different surfaces that delivers on the key needs of today’s wireless product designers: miniaturized design and superior signal sensitivity.

Extensive RF Experience

KYOCERA AVX’s antennas are supported by documentation, and when needed, by the expertise of RF engineers who have integrated hundreds of antenna designs into wireless devices.

For more information about KYOCERA AVX Antennas, visit our antenna portfolio or contact our technical support team.
