1001435M0 – Wi-Fi Dual Band (On/Off Ground) Stamp Metal Antenna

Antenna Type: Internal (Off Board)
Technology: WiFi / Bluetooth / WLAN / BLE / ZIGBEE
Band: 802.11 a/b/g/n/ac/ax
Frequency: 2400-2485 MHz / 5150-5850 MHz
Peak Gain: Varies Depending on off/on ground mounting – Refer to Datasheet
Efficiency: Varies Depending on off/on ground mounting – Refer to Datasheet
Size (mm): 41.1 x 14.6 x 9.5
Weight (grams): 1.55
Mounting: Adhesive + Cable + Connector

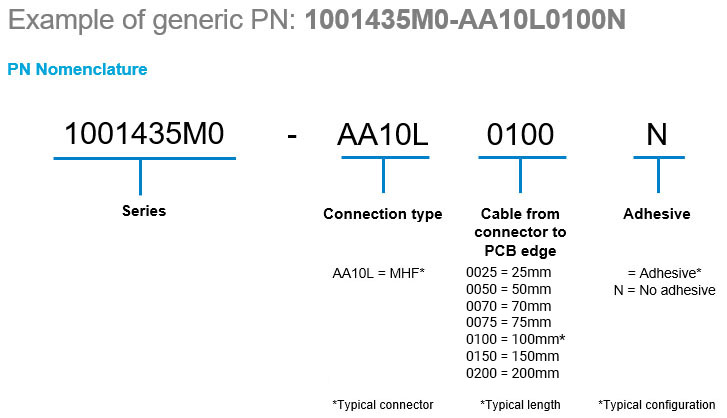

Antenna P/N: 1001435M0 | View P/N Nomenclature

Check Availability of Typical Part Numbers

Part Number

(Click P/N Below)
ConnectorCable LengthAdhesive
1001435M0-AA10L0025NMHF (u.fl compatible)
25mmNo
1001435M0-AA10L0050NMHF (u.fl compatible)50mmNo
1001435M0-AA10L0070NMHF (u.fl compatible)
70mmNo
1001435M0-AA10L0075NMHF (u.fl compatible)75mmNo
1001435M0-AA10L0100NMHF (u.fl compatible)
100mmNo
1001435M0-AA10L0150NMHF (u.fl compatible)
150mmNo
1001435M0-AA10L0200NMHF (u.fl compatible)200mmNo
1001435M0-AA10L0025
MHF (u.fl compatible)25mmYes
1001435M0-AA10L0050MHF (u.fl compatible)50mmYes
1001435M0-AA10L0070MHF (u.fl compatible)70mmYes
1001435M0-AA10L0075MHF (u.fl compatible)75mmYes
1001435M0-AA10L0100MHF (u.fl compatible)100mmYes
1001435M0-AA10L0150MHF (u.fl compatible)150mmYes
1001435M0-AA10L0200MHF (u.fl compatible)200mmYes

Looking for a different cable length or connector?

Send your inquiry: antenna.info@kyocera-avx.com


SKU: 1001435M0 Category:

Description

These antennas deliver on the key needs of device designers for higher functionality and performance in smaller/thinner designs. These innovative antennas provide compelling advantages for a 2.4 GHz and 5 GHz enabled handheld devices, media players and other mobile devices. These antennas requires a smaller design keep-out area and yields a quicker time-to-market without sacrificing RF performance.

Greater Flexibility

The first-in-class technology enables you to develop concept designs that are more advanced and that deliver superior performance in reception critical applications.

For more information about KYOCERA AVX Antennas, visit our antenna portfolio or send inquiry to antenna.info@kyocera-avx.com
