L2F/L3F Series

Feedthrough Filters
Features & Benefits
  • Voltage Range: 50, 100V
  • Dielectrics: NP0/C0G, X7R
  • Sizes: 0805, 1206 with SnPb Termination
  • Operating Temperature Range: -55°C to +125°C
Typical Applications
  • EMI suppression
  • Broadband I/O filtering
  • Vcc power line conditioning

Available in both a standard 0805 and 1206 size, KYOCERA AVX’s line of feedthru capacitors are ideal choices for EMI suppression, broadband I/O filtering, or Vcc power line conditioning. The unique construction of a feedthru capacitor provides low parallel inductance and offers excellent decoupling capability for all high di/dt environments and provides significant noise reduction in digital circuits to <5 GHz. A large range of capacitor values are available in either NP0 or X7R ceramic dielectrics.

Datasheet / Catalog
Datasheet / Catalog – Click to Download

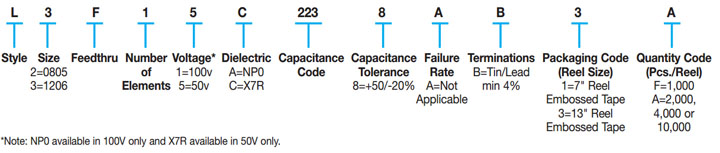

Part Number Information
Part Number Information

L2F/L3F Series
» Click to View

Design Tools
Spice Models – Click to Download
