Safety Capacitors | KGK / KGH Series

Safety Capacitors
Features & Benefits
  • Rated Voltage: 250V
  • Sizes: 1808, 1812, 2211, 2220
  • High Reliability and Stability
  • Small Size and High Capacitance
  • RoHS Compliant
  • Safety standard approval by:
    EN 60384-14: 2013
    IEC 60384-14 : 2013
    UL 60384-14 (Ed 2.0)
  • HALOGEN Compliant
Typical Applications
  • Modem
  • Facsimile
  • Telephone
  • Other electronic equipment for lighting or surge protection and isolation
Safety Certified Capacitors are designed for surge or lightning immunity in modem facsimile and other equipment. The capacitors of KGK are class X1/Y2 compliant, and the capacitors of KGH are class X2 compliant, respectively.

The green type capacitors in KGK/KGH are manufactured by using environmentally friendly materials without lead or cadmium.

The terminations are composed of plated nickel and pure tin to feature the superior leaching resistance during soldering.

Datasheet / Catalog / Literature

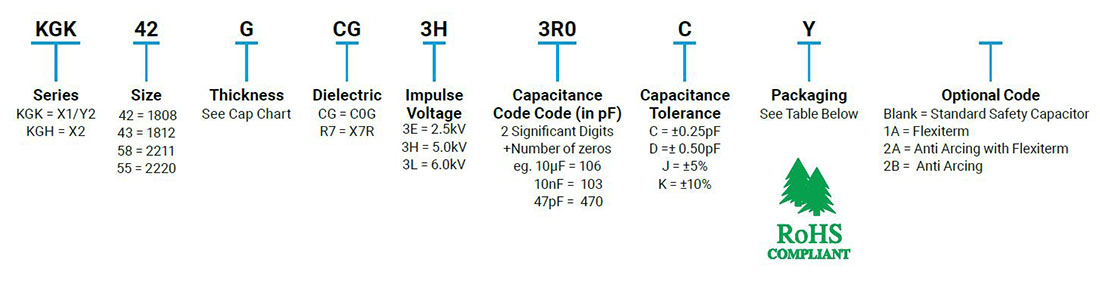

Part Number Information
Part Number Information

KGK / KGH Series
» View P/N Information
