AC Filtering – FLA (RoHS Compliant)

Features & Benefits
  • Voltage Range: 250V to 690V
  • Capacitance EIA Code: 10uF to 600uF
  • Working temperature range: -40°C to +85°C
Typical Applications
  • Particularly designed for AC filtering
  • High dielectric strength in operating conditions up to 85°C

The FLA series uses metallized polypropylene dielectric, aluminum can, impregnated with soft PU specially treated to have a very high dielectric strength in operating conditions up to 85°C.

The FLA has been designed with overpressure disconnected device. They are suitable for output AC filtering for power converters, UPS systems, solar inverters and motor drives etc.

Datasheet / Catalog
Technical Information
Technical Information – Click to Download

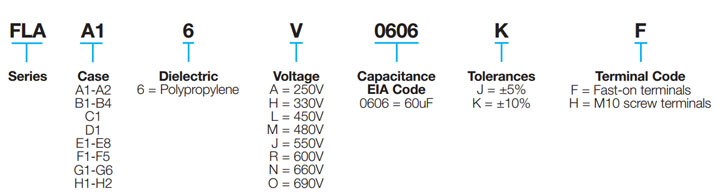

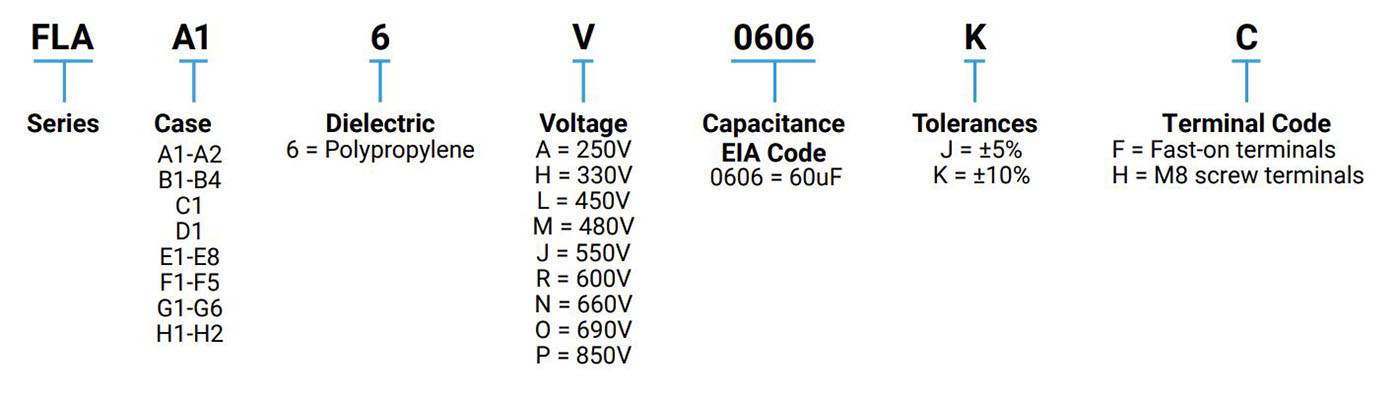

Part Number Information
Part Number Information

FLA (RoHS Compliant)
» Click to View

Technical Papers
Technical Papers – Click to Download
