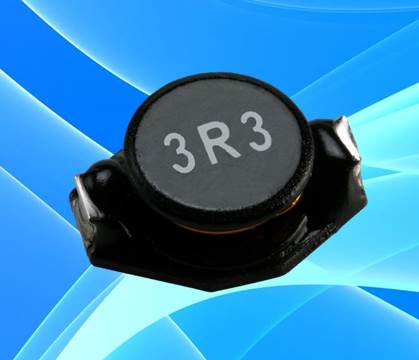

Non-Shielded – LMXN Series (Style C)


LMXN-C
Features & Benefits
  • Inductance: 0.47 to 1000 µH
  • Saturation Current: 0.10 to 40 A
  • Core Material: Ferrite
Typical Applications
  • Portable Telephones
  • Personal Computers
  • DC/DC Converters
  • Various Electronic Appliances

Non-Shielded SMD Power Inductors with ferrite core and sizes ranging from 6.60 x 4.45 x 2.92 (mm) to 18.54 x 15.24 x 7.11 (mm). Inductance ranges from 0.47 to 1000 µH and rated current ranges from 0.1 to 40 A.

Datasheet / Catalog

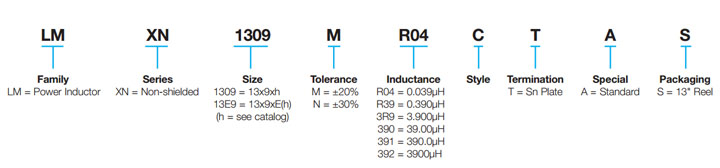

Part Number Information
Part Number Information

LMXN Series-Non-Shielded Style C
» Click to View
