Chip Terminations – CT Series

Chip Terminations
Features & Benefits
  • Nominal Impedance: 50 Ω
  • Resistive Tolerance: ±5% standard, ±2% available
  • Temperature Coefficient: ±150 ppm/ºC
Typical Applications
  • High Power RF Amplifier
  • Instrumentation

The CT series of high power chip terminations offer a nominal impedance of 50Ω, with the capability of resistances between 10Ω and 200Ω, resistive tolerance of ±2%, power handling capability up to 150W and operating temperature range from -55ºC to +150ºC. All terminations are manufactured in ISO 9001 facilities.

Datasheet / Catalog

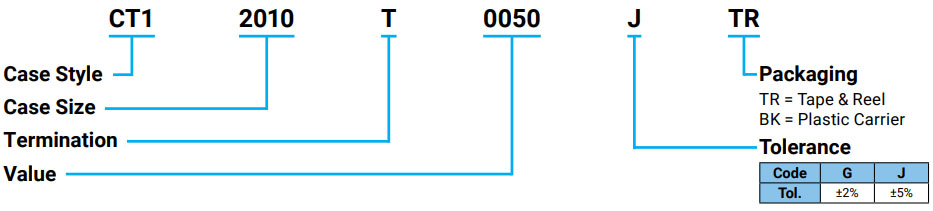

Part Number Information
Part Number Information

Chip Terminations - CT Series
» Click to View

Design Tools
KYOCERA AVX and Modelithics have partnered to offer FREE 90-Day trials of highly accurate, scalable advanced simulation models for various KYOCERA AVX parts including this part as well as Attenuators, Capacitors, Couplers, Inductors, Diplexers, Resistors.
Use Promo Code: AVXWP
