100A Series Porcelain Multilayer Capacitors (MLCs)


Features & Benefits
  • Case A Size (.055″ x .055″)
  • Capacitance Range 0.1 pF to 100 pF
  • High Q
  • Ultra-Stable Performance
  • Low ESR/ESL
  • High Self-Resonance
  • Low Noise
  • Established Reliability (QPL)

KYOCERA AVX, the industry leader, offers new improved ESR/ESL performance for the 100A Series RF/Microwave Capacitors. This is KYOCERA AVX’s most versatile high Q, high self resonant multilayer capacitor. High density porcelain construction provides a rugged, hermetic package.

Datasheet / Catalogs
Datasheet / Catalogs – Click to Download
Applications
Functional Applications
  • Bypass
  • Coupling
  • Tuning
  • Feedback
  • Impedance Matching
  • DC Blocking
Circuit Applications
  • Microwave/RF/Amplifiers
  • Mixers
  • Oscillators
  • Low Noise Amplifiers
  • Timing Circuits
  • Delay Lines
  • Medical Electronics
  • Filter Networks

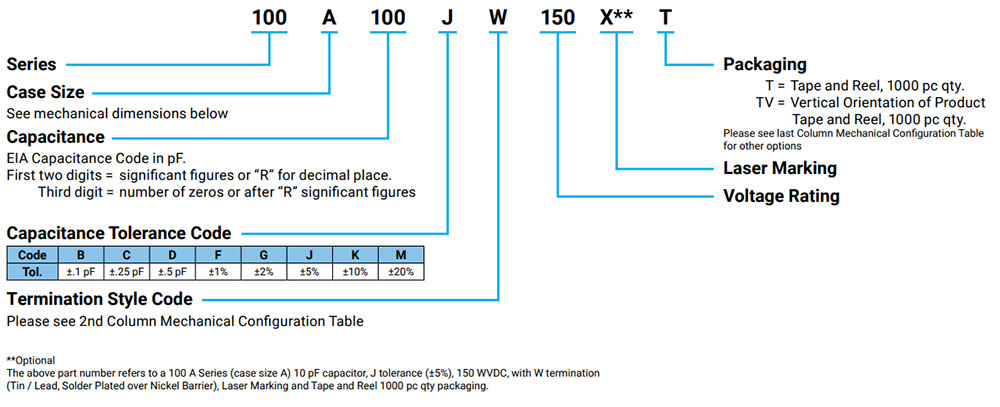

Part Number Information
Part Number Information

100A Series
» Click to View

Design Tools
Modelithics
Modelithics
KYOCERA AVX and Modelithics have partnered to offer FREE 90-Day trials of highly accurate, scalable advanced simulation models for various KYOCERA AVX parts including this part as well as Attenuators, Capacitors, Couplers, Inductors, Diplexers, Resistors.
Use Promo Code: AVXWP
