Features & Benefits
- Case R Size (.070″ x .090″)
- Capacitance Range 0.5 pF to 100 pF
- 500 WVDC
- Low ESR/ESL
- High Q
- Ultra-Stable Performance
- High Self-Resonance
KYOCERA AVX, the industry leader, offers new improved ESR/ESL performance for the 180R Series RF Capacitors. This is KYOCERA AVX’s lowest ESR multilayer capacitor. The high Q, high self-resonance characteristic many RF/Microwave applications
Datasheet / Catalogs
Datasheet / Catalogs – Click to Download
Applications
Functional Applications
- Bypass
- Coupling
- Tuning
- Impedance Matching
- DC Blocking
- Feedback
Circuit Applications
- RF Power Amplifiers
- Filters
- Timing Circuits
- Oscillators
- Delay Lines

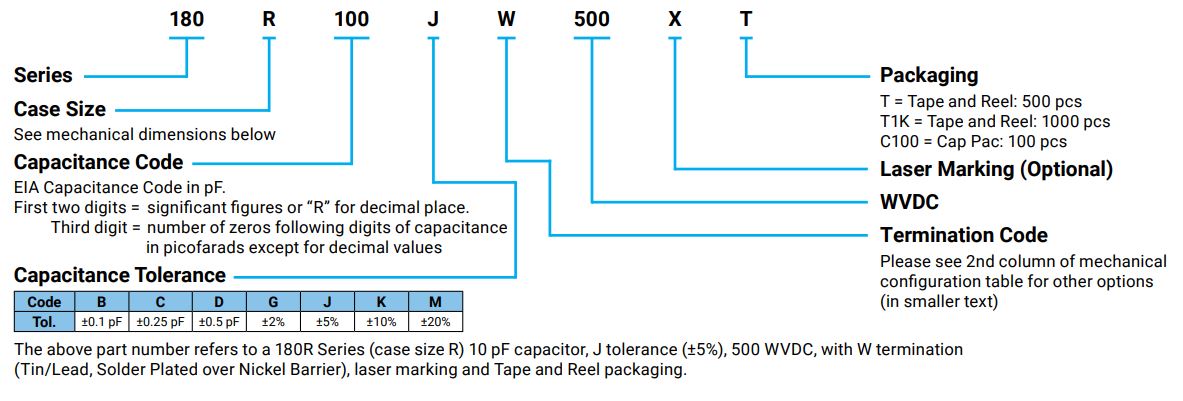

Part Number Information
