700B Series NPO Porcelain & Ceramic Multilayer Capacitors (MLCs)


Features & Benefits
  • Case A Size (.110″ x .110″)
  • Capacitance Range 0.1 pF to 5100 pF
  • Low ESR/ESL
  • Zero TCC
  • Low Noise
  • High Self-Resonance
  • Rugged Construction
  • Established Reliability (QPL)
  • Available with Encapsulation Option For leaded styles only

KYOCERA AVX, the industry leader, is announcing new improved ESR/ESL performance for the 700B Series RF/Microwave Capacitors. The superior high self-resonance and zero TCC characteristic of this Series provide excellent performance over a broad range of RF and microwave applications requiring minimum drift, including RF power. Porcelain and ceramic construction provide a rugged, hermetic package.

Datasheet / Catalogs
Datasheet / Catalogs – Click to Download
Applications
Functional Applications
  • Bypass
  • Coupling
  • Tuning
  • DC Blocking
Circuit Applications
  • Filter Networks
  • Oscillators
  • Timing Circuits
  • RF Power Amplifiers
  • MRI Imaging Coils
  • Medical Electronics

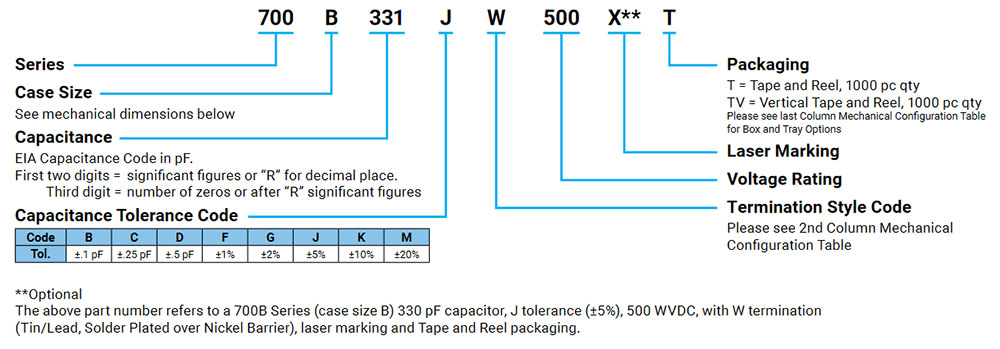

Part Number Information
Part Number Information

700B Series
» Click to View

Design Tools
Modelithics
Modelithics
KYOCERA AVX and Modelithics have partnered to offer FREE 90-Day trials of highly accurate, scalable advanced simulation models for various KYOCERA AVX parts including this part as well as Attenuators, Capacitors, Couplers, Inductors, Diplexers, Resistors.
Use Promo Code: AVXWP
