800A Series NPO Ceramic High RF Power Multilayer Capacitors


Features & Benefits
  • Case A Size (.055″ x .055″)
  • Capacitance Range 0.1 pF to 100 pF
  • Rugged, reliable NPO dielectric
  • Low ESR/ESL
  • Case optimized for highest self resonant frequency
  • Capable of highest RF Power
  • RoHS Compliant / Lead Free

KYOCERA AVX’s 800 A Series offers superb performance in demanding high RF power applications requiring consistent and reliable operation. The combination of highly conductive metal electrode systems, optimized case geometries, and proprietary dielectrics, yields the lowest ESR. AVX’s new NPO low loss rugged dielectrics are designed to provide superior heat transfer in high RF power applications. Ultra-low ESR and superior thermal performance insure that the 800 A Series products are your best choice for high RF power applications from UHF through microwave frequencies. Typical applications: UHF and Microwave Communications Systems, Wireless Communications, Public Safety Radio, Telecom, WiMAX, and Satellite Systems. Typical circuit applications: High RF Power Filter Networks, Combiners, Couplers, Matching Networks, Output Coupling, Antenna Coupling, and DC Blocking and Bypassing.

Datasheet / Catalogs
Datasheet / Catalogs – Click to Download
Applications
Functional Applications
  • UHF and Microwave Communications Systems
  • Wireless Communications
  • Public safety Radio (APCO-25)
  • Telecom
  • WiMAX / LTE*
  • Satellite Systems
Circuit Applications
  • High RF Power Filter Networks
  • Combiner
  • Couplers
  • Matching Networks
  • Output Coupling
  • Antenna Coupling
  • DC Blocking and Bypassing

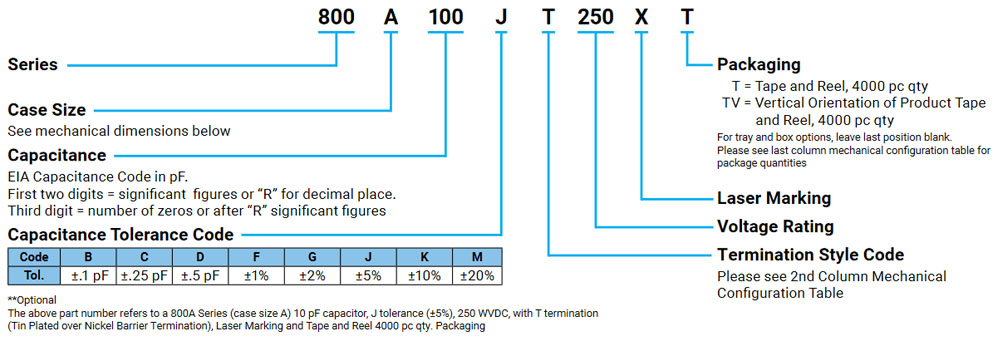

Part Number Information
Part Number Information

800A Series
» Click to View

Design Tools
Modelithics
Modelithics
KYOCERA AVX and Modelithics have partnered to offer FREE 90-Day trials of highly accurate, scalable advanced simulation models for various KYOCERA AVX parts including this part as well as Attenuators, Capacitors, Couplers, Inductors, Diplexers, Resistors.
Use Promo Code: AVXWP
