| Antenna Type: | Internal (On Board) |
| Technology: | GNSS |
| Band: | L1 / E1 / G1 / L2 / G2 / L5 / E5 / B2 / G3 |
| Frequency: | 1164 – 1240 MHz / 1560 – 1590 MHz |
| Peak Gain: | 1164 – 1240 MHz = 5.0 dBi 1560 – 1590 MHz = 4.6 dBi |
| Average Efficiency: | 1164 – 1240 MHz = 47% 1560 – 1590 MHz =56% |
| Size (mm): | 38.0 x 38.0 x 14.8 |
| Weight (grams): | 54.5 |
| Mounting: | Pins + Adhesive |
| Antenna P/N: | 9003384 |

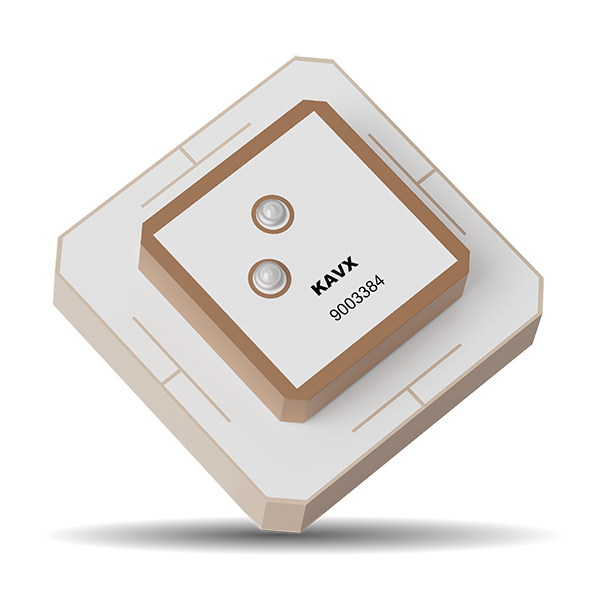

KYOCERA AVX series of Patch Antennas deliver on the key needs of device designers for higher functionality and performance. These innovative antennas provide compelling advantages for GNSS L1/L2/L5. 9003384 is a patch that covers GNSS L1/L2/L5. It is a Dual-feed Stacked Patch Antenna generating RHCP.
For more information about KYOCERA AVX Antennas, visit our antenna portfolio or contact our technical support team.
