9176-650 Series | Single Tine SMT IDC Connectors (18-24 AWG)

9176-650 Series | Single Tine SMT IDC Connectors (18-24 AWG)

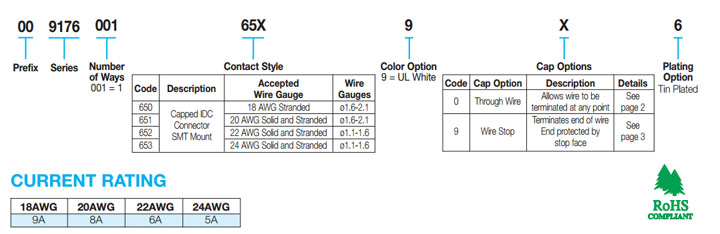

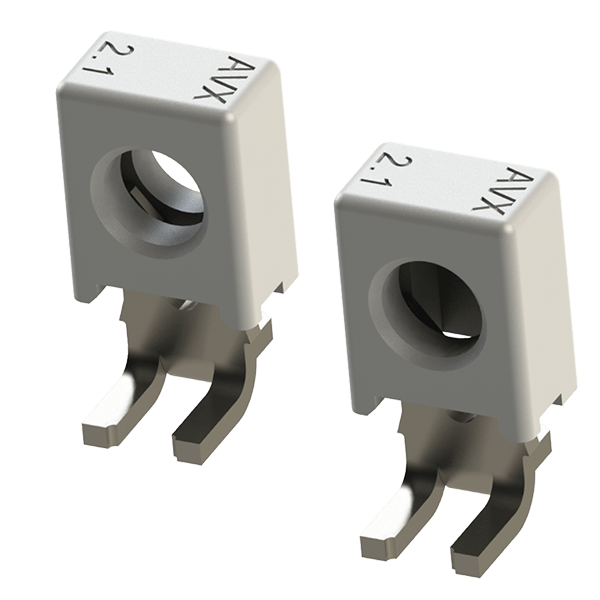

This single contact version of the proven 9176 family of connectors offers a lower cost solution to the market with only a 10% reduction in current rating. The SMT footprint is backward compatible with the standard dual contact configurations; offers all the same wire gauges and termination benefits of the integrated cap and provides a 10% height reduction.

For more information about KYOCERA AVX Connectors, visit our connector portfolio or contact our technical support team.

• IDC contact provides a gas-tight connection to the PCB for long term reliability
• Plastic cap retains the contact in position prior to automatic placement, then acts as the assembly tool to terminate the wires; no special tooling
• Tested to automotive levels on shock, vibration and temperature cycling for reliability
• Identical contact and footprint pattern to the existing 9176 for full backward compatibility and functionality
• The IDC contact reduces the total applied cost versus solder or crimp processes
• Connectors are available in two configurations for maximum flexibility: End and Through Wire

• Machine Controls: motors, drives, solenoids, sensors, fans and pumps
• Commercial Buildings: controls, security, fire and sensors
• Smart Grid: meters, breakers and panels
• SSL/LED: bulbs, fixtures, signage and streetlights
