X1005247 – GNSS (active) External Antenna

Antenna Type:External (Outdoor)
Technology:Beidou, Galileo, Glonass, GNSS, GPS
Band:L1 / G1 / B1 / E1
Frequency:1561 MHz, 1575 MHz, 1602 MHz
Peak Gain:Varies Depending on Frequency
Efficiency:Varies Depending on Frequency
Size (mm):44.0 x 35.2 x 14.5
Weight (grams):42g (X1005247-GNA1SA10A1)
62g (X1005247-GNA1SA30A1)
Mounting:Adhesive + Cable + Connector

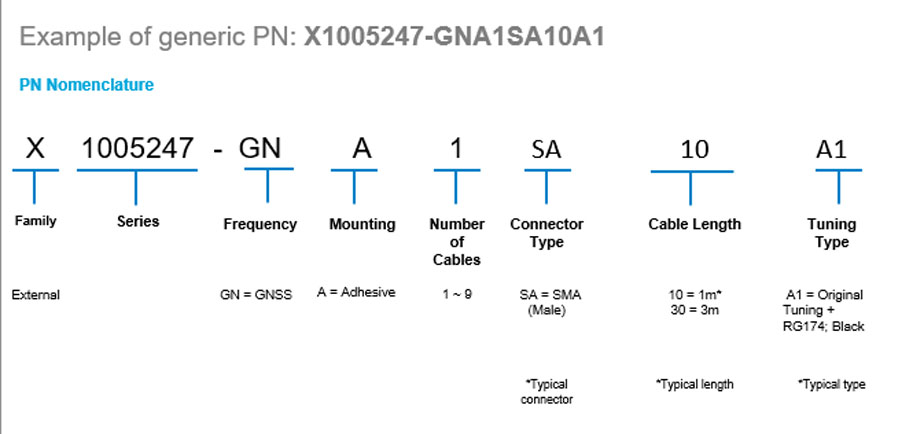

Antenna P/N:X1005247 | View P/N Nomenclature

Check Availability of Typical Part Numbers

Part Number

(Click P/N Below)
ConnectorCable Length
X1005247-GNA1SA10A1SMA (Male) Connector
X1005247-GNA1SA30A1SMA (Male) Connector3000mm

Looking for a different cable or connector?

Send your inquiry:

SKU: X1005247 Category:


Reduced Costs and Time-to Market

Standard antennas eliminate design fees and cycle time associated with a custom solution getting products to market faster.

High Performance

By optimizing antenna size, performance and emissions, customer and regulatory specifications are more easily met.
