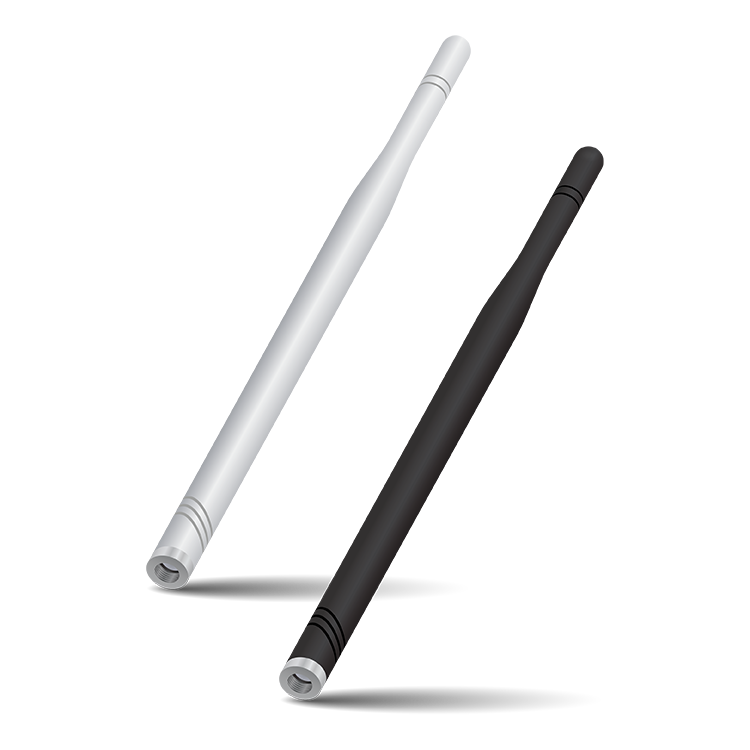

X9001748 – External Wi-Fi Dual Band Antenna

  • Antenna Type: External (Outdoor)
  • IP Rating: IP67
  • Technology: Wi-Fi, WLAN
  • Frequency: 2400-2485 MHz / 5150-5850 MHz / 802.11 a/b/g/n/ac/ax
  • Peak Gain:
    2400-2485 MHz = 3.2 dBi
    5150-5850 MHz = 3.6 dBi
  • Efficiency:
    2400-2485 MHz = 71%
    5150-5850 MHz = 68%
  • Size (mm): 180.0 x 12.98
  • Weight (grams): 24
  • Mounting: Connector

Antenna Series: X9001748 | View P/N Nomenclature


Check Availability of Typical Part Numbers

Part Number

(Click P/N Below)
ConnectorColor
X9001748-W3DRMB
RP-SMA (Male)Black
X9001748-W3DSMB
SMABlack
X9001748-W3DRMW
RP-SMA (Male)White
X9001748-W3DSMW
SMAWhite




SKU: X9001748 Category:

Description

This series of External antennas deliver on the key needs of device designers for higher functionality and performance in access point, with wide range of frequency options. X9001748 is an IP67 black or white antenna, which offers protection against dust tight and water. This antenna provides a high gain suited for Wi-Fi applications. The antenna can be mounted easily to the device via an RP-SMA Connection.
