5046 Series | 0.5mm Pitch

Connector Type:	Board to Board (BtB)
Technology:	Fine Pitch
# of Positions:	20-120
Current Rating	AC/DC 0.4A/Contact
Voltage Rating:	AC/DC 50V/Contact
Operating Temperature:	-25°C to +85°C
Industries:	Automotive, Medical, Industrial, IoT, Consumer, Transportation / Commercial Vehicles, Data / Telecom, Mobile Devices, Military / Aerospace

Download Datasheet

SKU: 5046 Category: Connectors

Description

Overview:

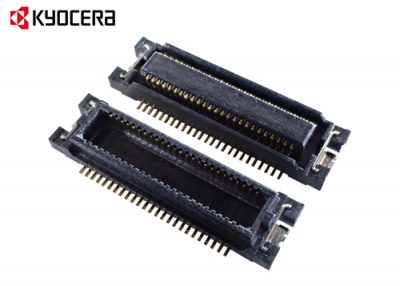

5046 Series | 0.5mm Pitch

The 5046 Series are stacking heights range from 3.0mm to 4.5mm. These series feature Kyocera’s original receptacle contacts, realizing secure mating with a fine “click” feeling and high reliability. Designed for automatic mounting machines, packaged in tape and reel.

For more information about KYOCERA AVX Connectors, visit our connector portfolio or contact our technical support team.

Features & Benefits:

Contact Material: Copper alloy
Insulator Material: Heat-resistant plastic
Operating Temperature Range: -25 to +85°C
Designed to have the strong resistance against torque forces on mating area to achieve the high reliability in the natural fall shock.

Typical Applications:

Laptop
Industrial Equipment
