5814 Series | 0.3mm Pitch

Connector Type:	Board to Board
Technology:	Fine Pitch
# of Positions:	10-50
Current Rating	DC 0.3A / Contact
Voltage Rating:	DC 50V / Contact
Operating Temperature:	-40°C to +85°C
Industries:	Automotive, Medical, Industrial, IoT, Consumer, Transportation / Commercial Vehicles, Data / Telecom, Mobile Devices, Military / Aerospace

Download Datasheet

SKU: 5814 Category: Connectors

Description

Overview:

5814 Series | 0.3mm Pitch

The 5814 Series are space-saving Board to Board Connectors featuring a fine pitch of 0.3mm, stacking height of 0.6mm (between boards) and a width of 1.5mm. This connector achieves industry-leading narrow pitch and compact dimensions, and is designed to prevent damage during connector mating operations through its unique metal fitting structure.

For more information about KYOCERA AVX Connectors, visit our connector portfolio or contact our technical support team.

Features & Benefits:

Space-Saving Design
Structure Prevents Damage During Mating
Independent Power Supply Contacts

Typical Applications:

Small Electronics & IoT Products
Smartphones
Wearable Devices
Audio Devices

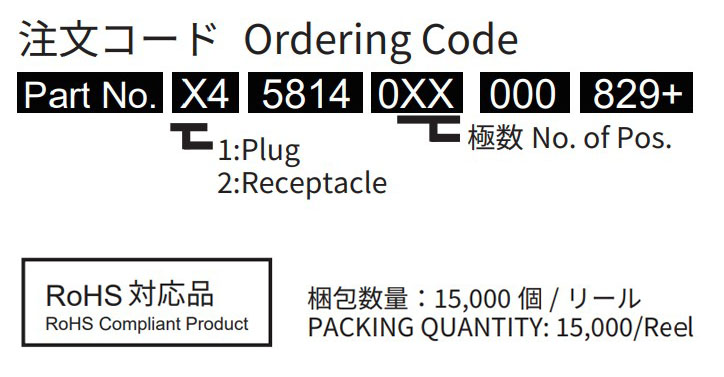

P/N Information
