5846 Series | 0.4mm Pitch

Connector Type: Board to Board (BtB)
Technology: Fine Pitch
# of Positions: 20
Current Rating DC 0.4A/Contact
Voltage Rating: DC 50V/Contact
Operating Temperature: -40°C to +85°C
Industries: Automotive, Medical, Industrial, IoT, Consumer, Transportation / Commercial Vehicles, Data / Telecom, Mobile Devices, Military / Aerospace
SKU: 5846 Category:

Description

Overview:

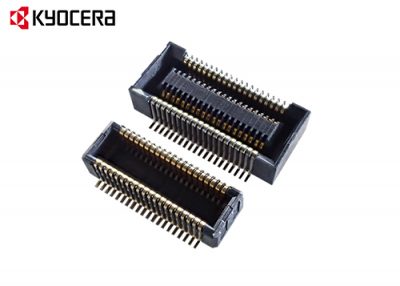

5846 Series | 0.4mm Pitch

The 5846 Series are 0.4mm pitch, ideal for note PCs etc. These products have achieved a stacking height of 3.0mm and a width of 5.8mm including leads.

For more information about KYOCERA AVX Connectors, visit our connector portfolio or contact our technical support team.
Features & Benefits:
Features & Benefits:
  • Contact Material: Copper alloy
  • Insulator Material: Heat-resistant plastic
  • Operating Temperature Range: -40 to +85°C
  • An original structure has secure “click” feeling, low mating force and high retention force.
Typical Applications:
Typical Applications:
  • Laptops
  • Industrial Equipment
  • Power Supplies
