6232 Series | 1.0mm Pitch

Connector Type: FFC / FPC
Technology: Fine Pitch
# of Positions: 3-30
Current Rating AC/DC 0.5A
Voltage Rating: AC/DC 50V
Operating Temperature: -20°C to +85°C
Industries: Automotive, Medical, Industrial, IoT, Consumer, Transportation / Commercial Vehicles, Data / Telecom, Mobile Devices, Military / Aerospace
SKU: 6232 Category:

Description

Overview:

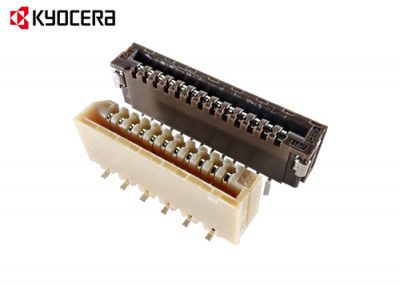

6232 Series | 1.0mm Pitch

The 6232 Series are 1.0mm pitch, Non-ZIF, SMT / through hole type FPC/FFC Connectors with cost advantages. The SMT type is a right angle connector (top or bottom contact) or vertical connector which can be packed in tape and reel for automatic mounting. We offer both right angle and vertical connectors for through hole types, but only bottom contacts are available in right angle versions.

For more information about KYOCERA AVX Connectors, visit our connector portfolio or contact our technical support team.
Features & Benefits:
Features & Benefits:
  • Contact Material: Copper alloy
  • Insulator Material: Heat-resistant plastic
  • Operating Temperature Range: -20 to +85°C
Typical Applications:
Typical Applications:
  • Industrial Equipment
  • Flat TV
  • Power supplies
