6284 Series | 0.5mm Pitch

Connector Type: FFC / FPC
Technology: Fine Pitch
# of Positions: 5-30
Current Rating AC/DC 0.4A
Voltage Rating: AC/DC 50V
Operating Temperature: -40°C to +85°C
Industries: Automotive, Medical, Industrial, IoT, Consumer, Transportation / Commercial Vehicles, Data / Telecom, Mobile Devices, Military / Aerospace
SKU: 6284 Category:

Description

Overview:

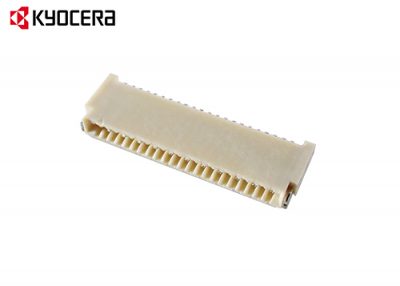

6284 Series | 0.5mm Pitch

The 6284 Series are low profile, 0.5mm pitch, Non-ZIF connectors featuring a height of 1.5mm and width of 4.0mm. These products are cost friendly and can be utilized in versatile applications including downsized digital home electric appliances.

For more information about KYOCERA AVX Connectors, visit our connector portfolio or contact our technical support team.
Features & Benefits:
Features & Benefits:
  • Dual-sided contact improves workability in part approval process and allows easy equipment design.
  • Capable of multiple positions from 5 to 30.
  • Non-ZIF structure with staggered contacts
  • Contact Material: Copper alloy
  • Insulator Material: Heat-resistant plastic
  • Operating Temperature Range: -40 to +85°C
Typical Applications:
Typical Applications:
  • Laptop
  • Audio equipment
  • Gaming Equipment
