6808 Series | 0.5mm Pitch

Connector Type:	FPC / FFC
Technology:	Fine Pitch
# of Positions:	7
Current Rating	DC 0.5A or 4.0A (3 contacts)
Voltage Rating:	DC 50V
Operating Temperature:	-40°C to +85°C
Industries:	Automotive, Medical, Industrial, IoT, Consumer, Transportation / Commercial Vehicles, Data / Telecom, Mobile Devices, Military / Aerospace

Download Datasheet

SKU: 6808 Category: Connectors

Description

Overview:

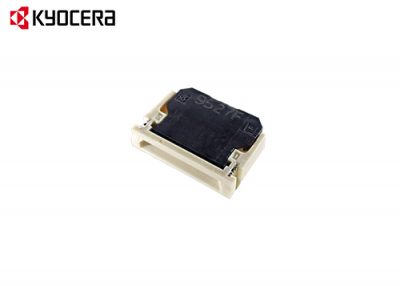

6808 Series | 0.5mm Pitch

The 6808 Series are FPC Connectors for batteries, featuring a pitch of 0.5mm, right angle, and height of 1.5mm. Dual-sided contacts with both top and bottom contacts contribute to fewer restrictions in FPC or PCB layouts. Back locks are adopted in these connectors, thus strengthening resistance to tensile force and realizing high contact reliability against vibrations and drop shocks.

For more information about KYOCERA AVX Connectors, visit our connector portfolio or contact our technical support team.

Features & Benefits:

Supports rated current of DC 4.0A/3contacts.
Dual-sided contacts with both top and bottom contacts contribute to fewer restrictions in FPC or PCB layouts.
Packaged in tape and reel: 5,000 pieces/reel
Contact Material: Copper alloy
Insulator Material: Heat-resistant plastic
Operating Temperature Range: -40 to +85°C

Typical Applications:

Tablet PC
