6824 Series | 0.4mm Pitch

Connector Type: FFC / FPC
Technology: Fine Pitch
# of Positions: 4-22
Current Rating DC 0.4A
Voltage Rating: DC 50V
Operating Temperature: -40°C to +85°C
Industries: Automotive, Medical, Industrial, IoT, Consumer, Transportation / Commercial Vehicles, Data / Telecom, Mobile Devices, Military / Aerospace
SKU: 6824 Category:

Description

Overview:

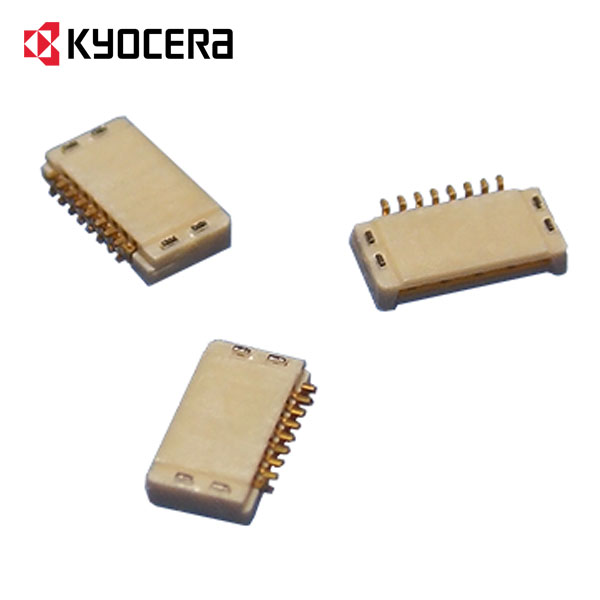

6824 Series | 0.4mm Pitch

The 6824 Series are FPC/FFC Connectors featuring a pitch of 0.4mm, height of 0.93mm, and width of 2.7mm developed for the internal connection of mobile equipment such as digital cameras, tablet PCs, smartphones, and game consoles. Despite their low-profile and space-saving features, there are fewer restrictions in FPC or PCB layouts due to dual-sided contacts.

Suitable for smartphones, tablet PCs, laptops, audio equipment and game machines.

For more information about KYOCERA AVX Connectors, visit our connector portfolio or contact our technical support team.
Features & Benefits:
Features & Benefits:
  • The Non-ZIF structure requires low force for an FPC/FFC insertion.
  • Developed for the internal connection of mobile equipment
  • Height = 0.93mm / Width = 2.7mm
Typical Applications:
Typical Applications:
  • Smartphone/Tablet PC
  • Laptop
  • Audio equipment
  • Gaming Equipment
