6841 Series | 0.3mm Pitch

Connector Type: FFC / FPC
Technology: Fine Pitch
# of Positions: 15-51
Current Rating AC/DC 0.2A
Voltage Rating: AC/DC 50V
Operating Temperature: -40°C to +85°C
Industries: Automotive, Medical, Industrial, IoT, Consumer, Transportation / Commercial Vehicles, Data / Telecom, Mobile Devices, Military / Aerospace
SKU: 6841 Category:

Description

Overview:

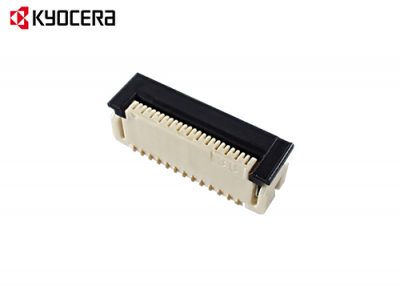

6841 Series | 0.3mm Pitch

The 6841 Series are 0.3mm pitch, ZIF, vertical, slide-lock type FPC Connectors that are best suited for the internal connection of electric equipment requiring downsizing and multi-functions, such as notebook PCs, DSCs (Digital Still Cameras), DVCs (Digital Video Cameras), digital audio players, etc. These low profile, space-saving products feature a height of 3.6mm and width of 2.95mm (terminals are width of 2.8mm).

For more information about KYOCERA AVX Connectors, visit our connector portfolio or contact our technical support team.
Features & Benefits:
Features & Benefits:
  • Designed for Tablet PCs / Notebook PCs, DSCs / DVCs, Audio Players etc.
  • The slider can be locked with a simple, one finger operation
  • Contact Material: Copper alloy
  • Insulator Material: Heat-resistant plastic
  • Operating Temperature Range: -40 to +85°C
Typical Applications:
Typical Applications:
  • Laptop
  • Audio equipment
  • Gaming Equipment
