6893 Series | 0.5mm Pitch

Connector Type: FPC / FFC
Technology: Fine Pitch
# of Positions: 10-60
Current Rating DC 0.5A
Voltage Rating: DC 50V
Operating Temperature: -40°C to +125°C
Industries: Automotive, Medical, Industrial, IoT, Consumer, Transportation / Commercial Vehicles, Data / Telecom, Mobile Devices, Military / Aerospace
SKU: 6893 Category:

Description

Overview:

6893 Series | 0.5mm Pitch

One-action type 6893 Series FPC/FFC connectors utilize a proprietary structure that enables quick, stable connections in a single insertion, removing a significant impediment to fully automated assembly. This new series offers a 2x improvement in foreign matter removal performance compared to our previous products, helping to prevent the FPC/FFC deposits that can cause contact failure after insertion. It is heat-resistant up to 125 degrees Celsius and mountable on in-vehicle devices such as HUDs, clusters, and CIDs with strict high-temperature compliance.　Recommended applications: Flat TV, game machine, automobile, industrial equipment and power supplies etc.

For more information about KYOCERA AVX Connectors, visit our connector portfolio or contact our technical support team.
Features & Benefits:
Features & Benefits:
  • Unique contact pin structure improves foreign object removal performance
  • MIPI D-PHY 4Gbps compatible
Typical Applications:
Typical Applications:
  • Flat TV
  • Game Machine
  • Automobile
  • Industrial Equipment
  • Power Supplies

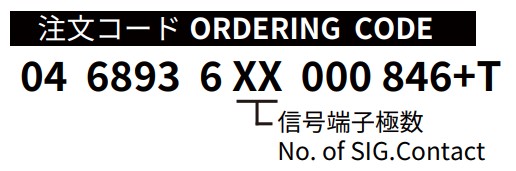

P/N Information
