8040 Series | 1.0mm Pitch

Connector Type:	FFC / FPC, Ethernet, Specialty, Board to Board (BtB), Wire to Board (WtB), Wire to Wire (WtW)
Technology:	Fine Pitch, Insulation Displacement (IDC), Poke-Home, 2-Piece, Card Edge, Compression / Battery, Memory, Input/Output (I/O), Splice, DIN, Rack & Panel, Single-Pair Ethernet (SPE), Shield Locks
# of Positions:	2
Current Rating	DC 1.0A/Contact
Voltage Rating:	DC 30V/Contact
Operating Temperature:	-55°C to +80°C
Industries:	Automotive, Medical, Industrial, IoT, Consumer, Transportation / Commercial Vehicles, Data / Telecom, Mobile Devices, Military / Aerospace

Download Datasheet

SKU: 8040 Category: Connectors

Description

Overview:

8040 Series | 1.0mm Pitch

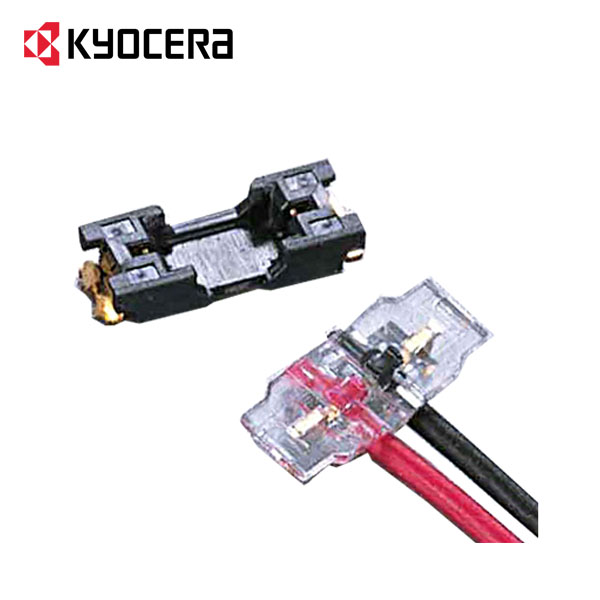

The 8040 Series are super small, low profile Wire to Board Connectors featuring a pitch of 1.0mm and mating height of 1.4mm with two contacts to meet market needs for high-density packaging, especially in small mobile devices.

Suitable for small consumer devices such as smartphones, tablet PCs, wearable devices, laptops, audio equipment and game machines.

For more information about KYOCERA AVX Connectors, visit our connector portfolio or contact our technical support team.

Features & Benefits:

Pitch of 1.0mm
Mating height of 1.4mm
Meets market needs for high-density packaging

Typical Applications:

Smartphone/Tablet PC
Wearable Device
Laptop
Audio equipment
Gaming Equipment

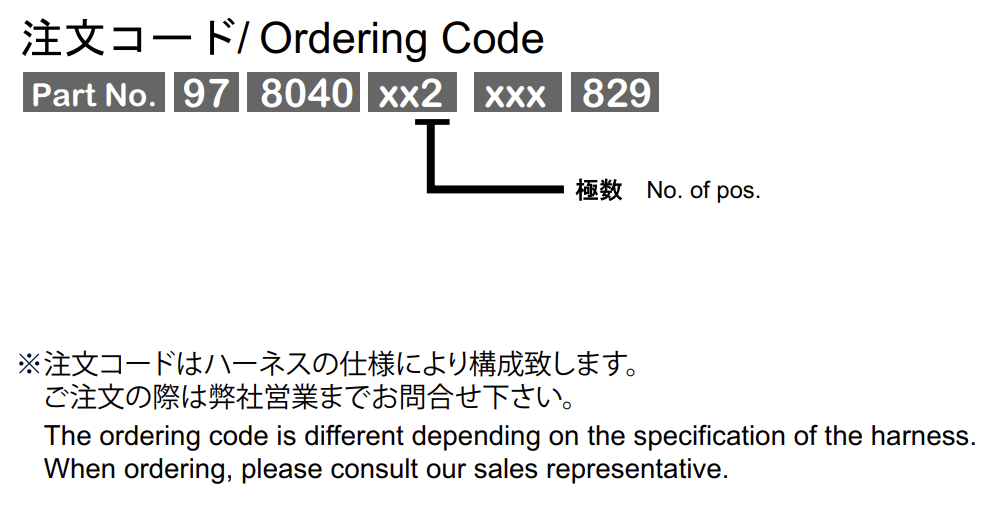

P/N Information

» Click to View
