9155-900 Series | Vertical Mate 2.5mm Pitch

9155-900 Series | Vertical Mate 2.5mm Pitch

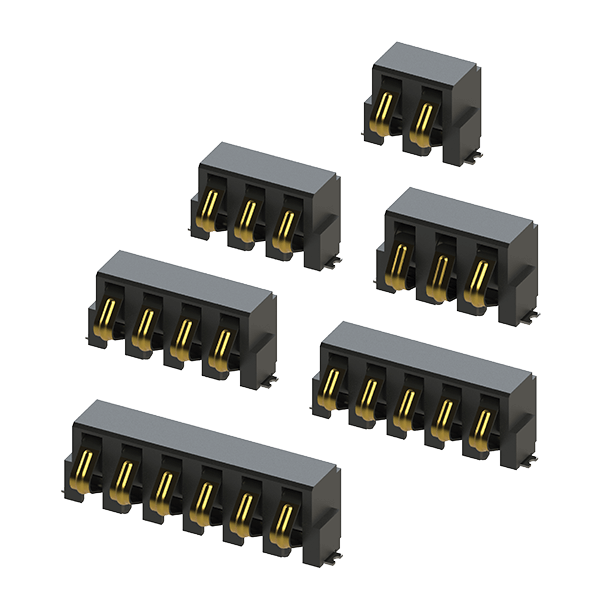

KYOCERA AVX has been manufacturing battery connectors for over 25 years and offers the widest standard range. The 2.5mm pitch, vertical mate 9155-900 series is the latest edition of battery connectors KYOCERA AVX is introducing to the market that could eliminate end-user damage when inserting pluggable modules or packs into a base unit.

Traditional right-angle connectors have contact geometries that rely on the pack being inserted at an angle and then rotated down into position. The unique contact design of the 9155-900 Series deflects cleanly and easily when a module or battery pack is pushed vertically into position, eliminating any damage to the end user.

The 9155-900 Series is rated for up to 5,000 mating cycles and has a contact nose with an anti-snag feature to protect during deflection.

For more information about KYOCERA AVX Connectors, visit our connector portfolio or contact our technical support team.

• Allows pluggable modules or packs to be inserted vertically.
• Unique contact design to eliminate end user damage.
• Reliable contact that survives automotive shock and vibration.
• Optional locating pins (pegs) can be made upon customer request.

• Handheld/portable devices requiring docking or cradle charging
• Industrial devices requiring pluggable or programming modules
• Internet appliances and home appliance requiring battery back-up
• Automotive application requiring easy installation to removable unit or battery pack
