9159-800 Series | Dual Entry Card Edge Connector

9159-800 Series | Dual Entry Card Edge Connector

KYOCERA AVX Interconnect continues to expand its card edge product offering with the 9159-800 series of Dual Entry Card Edge Connectors, starring our company’s field proven spring contact technology.

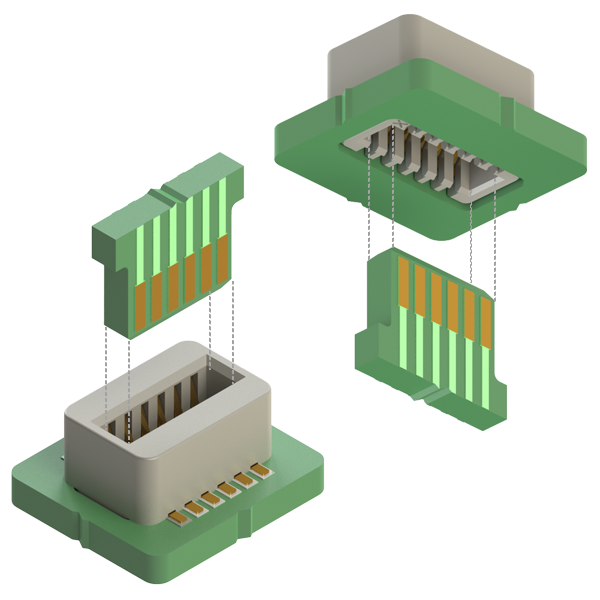

Kyocera AVX’s 9159-800 series of card edge connectors is a dual entry mating solution featuring a reduced pitch of 1mm with gold plated beryllium copper compression contacts. Which results in a highly reliable, small form factor, vertical card edge connector. This unique design allows connection of the mating board from either side of the board (top or bottom entry).

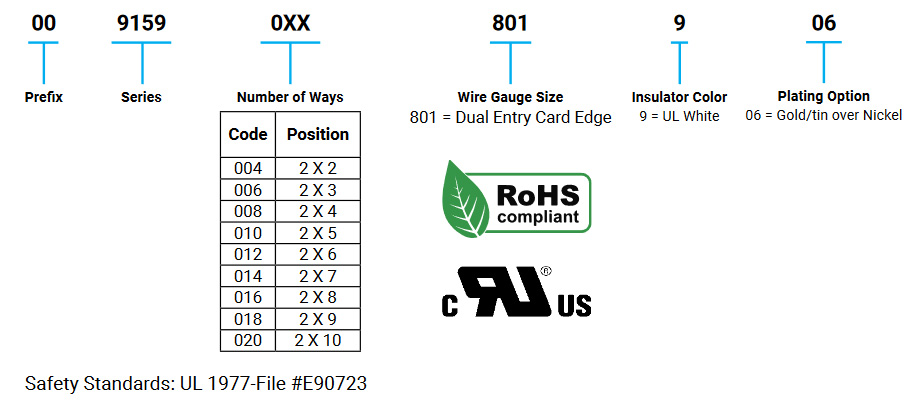

The 9159-800 series is available from 4 to 20 positions, rated up to 2.0A per contact, and is designed for mating PCB boards with 1.6mm thickness and gold-plated pads.

For more information about KYOCERA AVX Connectors, visit our connector portfolio or contact our technical support team.

• Unique vertical card edge solution capable of mating from both sides
• Excellent electrical and mechanical performance provides high integrity connections in harsh environments
• Small form factor, vertical card edge
• Recessed thru board PCB mounting for lower profile
• Easy installation with low mating forces

• Automotive body electronics & infotainment
• Transportation
• Industrial & factory automation (sensor, light curtains…)
• Home automation
• White goods
• Product Specification: Refer to 201-01-247
• Application Notes: Refer to 201-01-248
