9288-000 Series | Hermaphroditic WTW & WTB Connector

9288-000 Series | Hermaphroditic WTW & WTB Connector

KYOCERA AVX is expanding its product offering with the 9288-000 series of Hermaphroditic connectors. This two-piece wire-to-wire and wire-to-board solution utilizes our proven Poke-Home technology for easy wire installation in the field. Wire-to-wire termination is performed using two identical parts mating with each other, resulting in only one part number on the bill of materials. Wire-to-board connection is accomplished with the same part as with wire-to-wire but mating to an SMT version soldered to the PCB.

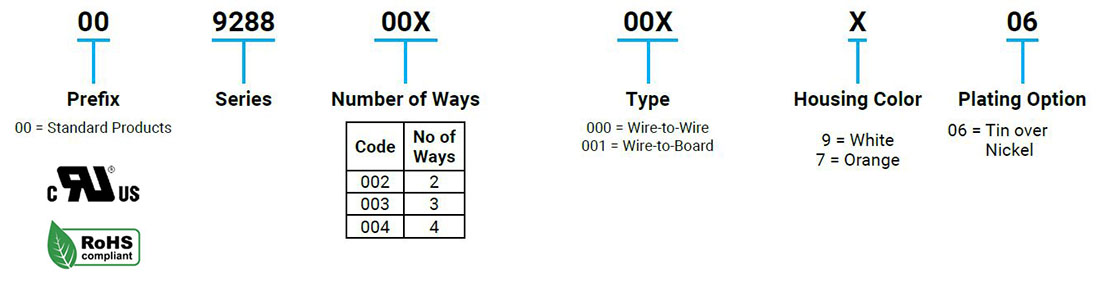

The 9288-000 series features plastic latches for good mechanical retention. Available from 2 to 4 positions with a wire gauge range of 16 to 18 AWG, solid or stranded wires, on a 5mm pitch. There are two housing color options (orange or white) and plating is tin over nickel.

For more information about KYOCERA AVX Connectors, visit our connector portfolio or contact our technical support team.

• Supports 16 to 18 AWG, solid or stranded wires
• Only 1 part number on the BOM (Wire-to-Wire version)
• Simple strip and poke-home wire insertion with twist and pull wire extraction
• Easy installation and mating locking feature
• Operating Temperature: -40°C to +130°C
• Storage Temperature: -40°C to +60°C
• Voltage Rating: 600 VAC (RMS) or DC Equivalent
• Current Rating:
  7 Amp / Contact for 16AWG
  6 Amp / Contact for 18AWG
• Durability : Wire replacement – 3 cycles
• Connector mate/unmate – 20 cycles
• UL Approved

• Industrial Wire-To-Wire
• Industrial Wire-To-Board
• Field termination
