Accu-Guard® II Low Current Fuses (LGA)


Features & Benefits
  • Fuse Ratings from .05 to .200 amps
  • Rated voltage:
    0402 = 32V
    0603 = 63V
  • Operating temperature: -55ºC to +125ºC
  • RoHS compliant
  • UL Approval: E141069
Typical Applications
  • Cellular Telephones
  • Computers
  • LCD Screens
  • Digital and Video Cameras
  • Instrumentation

The new F0402G and F0603G Accu-Guard® series of fuses is based on thin-film technology which allows precise control of the component electrical and physical characteristics that is not possible with standard fuse technologies. The Accu-Guard® Low Current series encompasses the lowest current ratings in compact 0402 and 0603 packages and features LGA terminations.

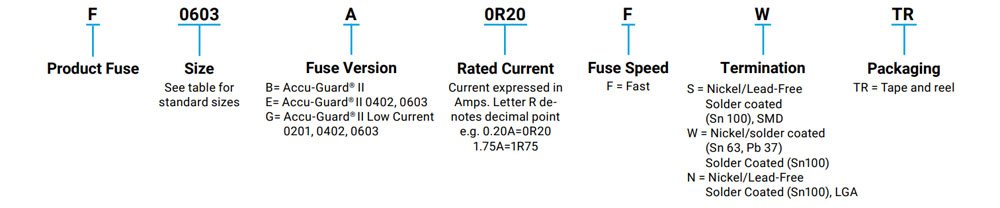

Part Number Information

Part Number Information

Accu-Guard® Low Current Fuse
» Click to View
