9177-500 Series | Single IDC Contact (12-18 AWG)


9177-500
STRIPT Connectors
Features & Benefits
  • Proven “gas tight” cold welded wire termination
  • Redundant contact systems provides enhanced wire retention and high current carrying capabilities
  • Cost effective STRIPT™ insulator-less contact system
Typical Applications
  • Industrial motor controls, drives & pumps
  • Commercial building wiring and electrical systems
  • Outdoor/Transportation lighting
  • Solar and alternative energy

STRIPT™, insulation displacement naked contact technology provides cost effective, insulator-less, wire-to-board connection for discrete wire applications. Designed from the ground up to function just like a traditional insulated connector, these UL certified contacts have been industry proven for many years. This 9177-500 series has been designed to support the larger wire gauges from a robustness and current rating perspective.

Datasheet / Catalog

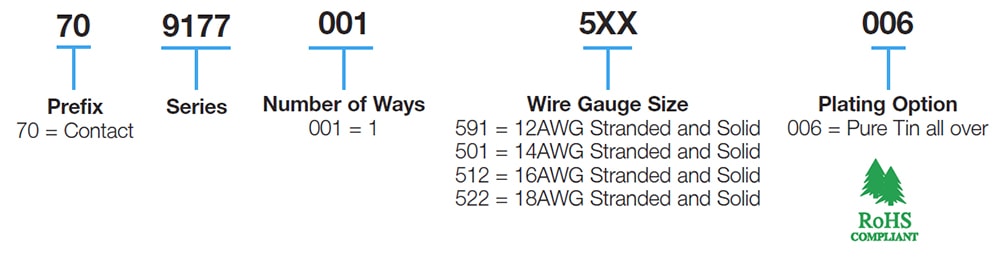

Part Number Information
Part Number Information

Single IDC Contact 12-18 AWG: 9177-500
