13-9159-100 | Perpendicular Mother/Daughter

13-9159-100 Series | Perpendicular Mother/Daughter – Vertical Plug

Connector Type:	Board to Board (BtB)
Technology:	2-Piece
# of Positions:	2, 3, 4, 5, 6
Current Rating	5A / Contact
Voltage Rating:	125 VAC (RMS) or DC Equivalent
Operating Temperature:	-40°C to +125°C
Industries:	Automotive, Lighting, Industrial, IoT, Consumer, Transportation / Commercial Vehicles
Certifications:

Download Datasheet

SKU: 13-9159-100 Category: Connectors

Description

Overview:

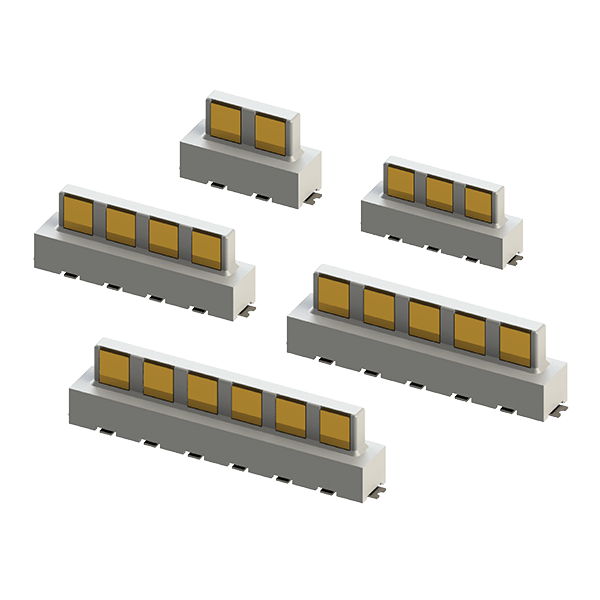

13-9159-100 Series | Perpendicular Mother/Daughter – Vertical Plug

This vertical plug connector opens up the spectrum to include all commercial, industrial and transportation applications requiring perpendicular PCB mating and latching Wire-to-Board cabled sockets with an already proven connector system. With sizes from 2p-6p, these gold plated contacts mate with high spring force beryllium copper receptacle connectors.

For more information about KYOCERA AVX Connectors, visit our connector portfolio or contact our technical support team.

Features & Benefits:

Single sided SMT RoHS solder attachment
Centrally located pick & place cap for easy placement
Gold plated BeCu contact system for high reliability in harsh environments
Available in white: supports SSL market preferences

Typical Applications:

Allows assembly of PCBs at right angles
Accepts 24-9159 IDC wired/cabled socket

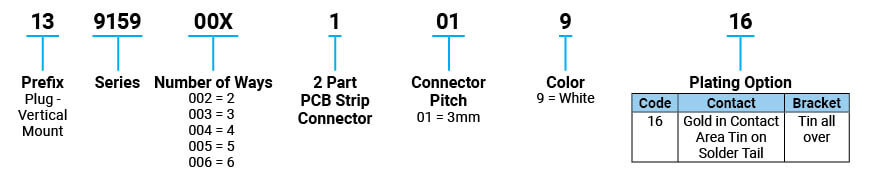

P/N Information

» Click to View
