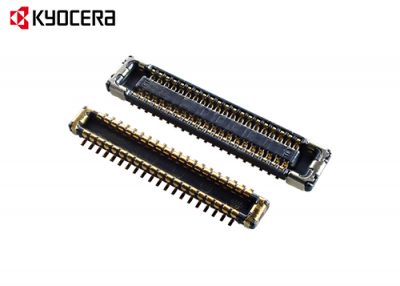

5861 Series | 0.35mm Pitch Connector

Connector Type:	Board to Board (BtB)
Technology:	Fine Pitch
# of Positions:	6-60
Current Rating	DC 0.5A/Contact (6-40 Pos.) DC 0.3A/Contact (42-60 Pos.) DC 5.0A/Metal Tab
Voltage Rating:	DC 60V/Contact
Operating Temperature:	-55°C to +85°C
Industries:	Automotive, Medical, Industrial, IoT, Consumer, Transportation / Commercial Vehicles, Data / Telecom, Mobile Devices, Military / Aerospace

Download Datasheet

SKU: 5861 Category: Connectors

Description

Overview:

5861 Series | 0.35mm Pitch Connector

The 5861 Series are space-saving Board to Board Connectors featuring a fine pitch of 0.35mm, stacking height of 0.6mm (between boards) and a width of 1.95mm. With the metals covering both ends, the connector, with narrow pitches and low profile though, realizes the structurally high robustness and smooth guiding function for mating to prevent breakage of the insulator housing and contact caused by misaligned mating. The metals at both ends of which rated current is 5.0A/metal tab enable to carry a large current.

For more information about KYOCERA AVX Connectors, visit our connector portfolio or contact our technical support team.

Features & Benefits:

Contact Material: Copper alloy
Insulator Material: Heat-resistant plastic
Operating Temperature Range: -55 to +85°C
RoHS compliant and Halogen-free
