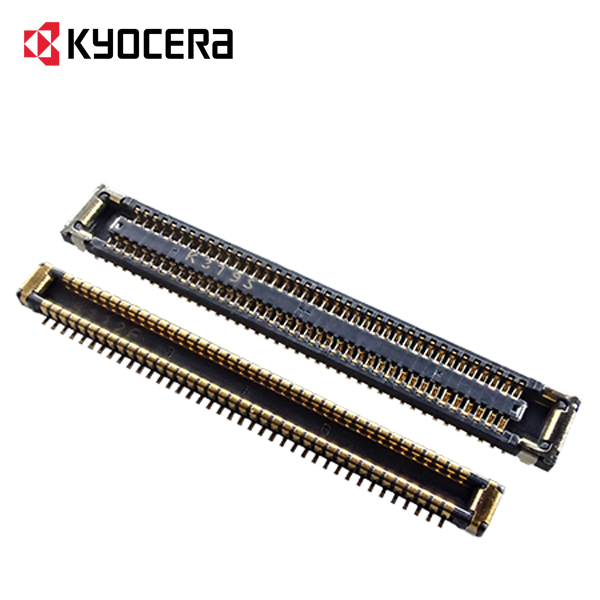

The 5897 Series are space-saving Board to Board Connectors featuring a fine pitch of 0.35mm, stacking height of 0.8mm (between boards) and a width of 2.3mm. In addition to its narrow pitches and low profile as with the conventional products containing the robust metals, the metal fittings covering both ends prevent breakage of the insulator housing and contacts due to misalignment in their mating. Thus it is a connector that realizes high robustness and smooth guide into mating. Besides the above, metal fittings are also provided inside the receptacle connector to increase the strength of the connector. The metals at both ends of which rated current is 3.0A/metal tab enable to carry a large current. Recommended applications:
Metal fittings covering both ends of the plug and receptacle connectors and inside the receptacle one reinforce the lowering in strength caused by lower profile and prevent damage due to misalignment in their mating.
A pinching structure (two-point contact design), which is highly resistant to vibration and drop shocks, has been adopted for the contact structure. Furthermore, the plug contacts have an original structure featuring a wiping effect which eliminates foreign matter with concentrated load, thus realizing high contact reliability.
